Parking Brake Control: Exploded View

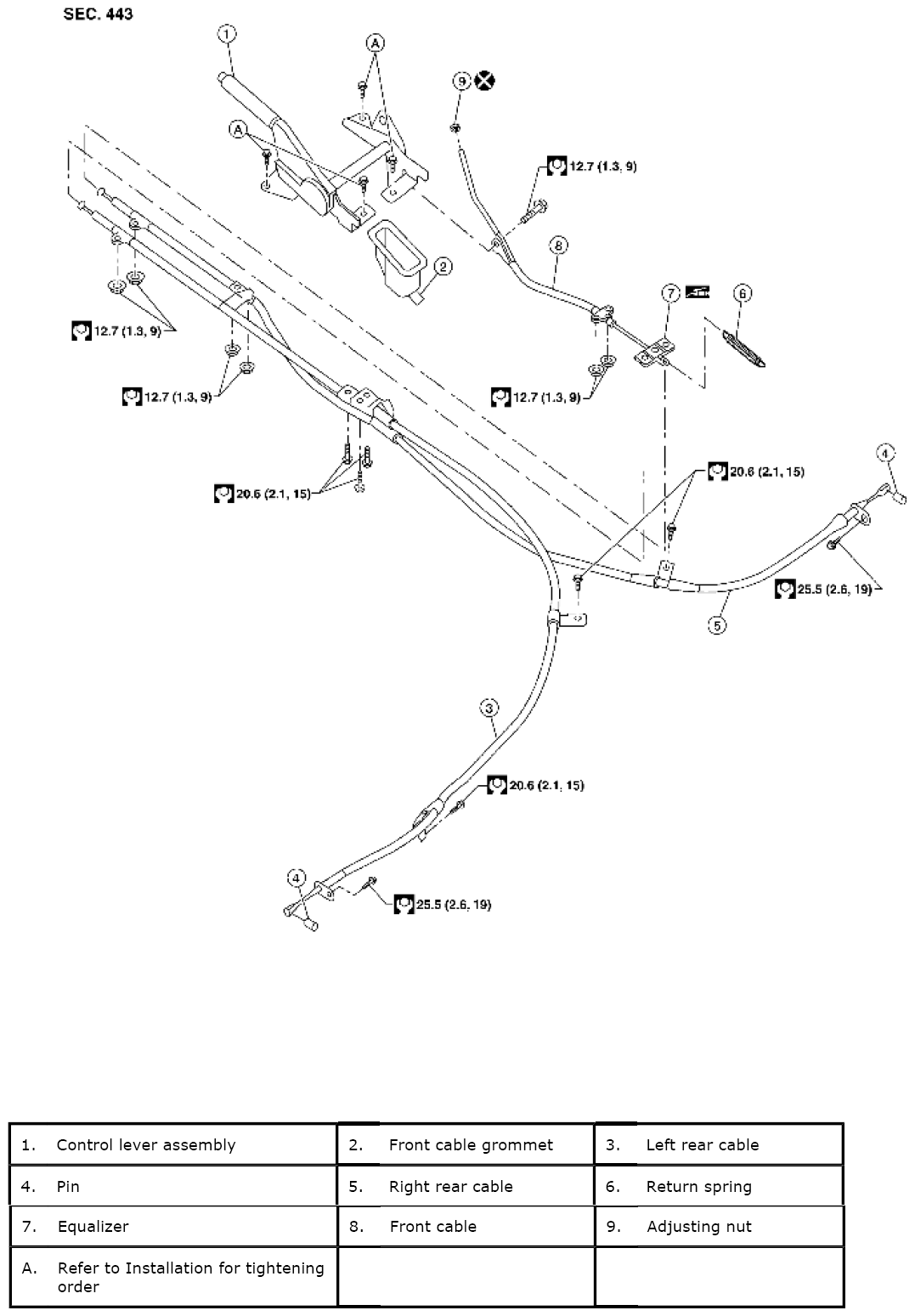

Fig 1: Exploded View Of Parking Brake Control With Torque Specifications

G06445680

Courtesy of SUZUKI OF AMERICA CORP.
