Main Harness

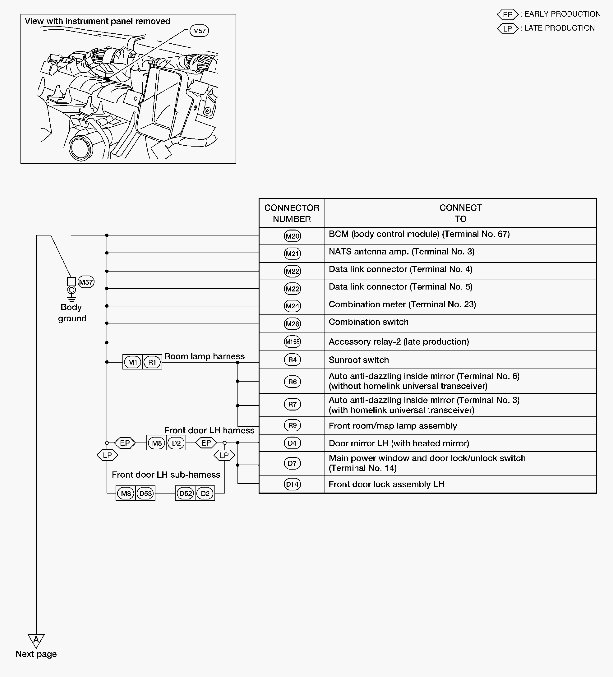

Fig 1: Identifying Ground Distribution - Main Harness (1 Of 3)
G00536545Courtesy of SUZUKI OF AMERICA CORP.

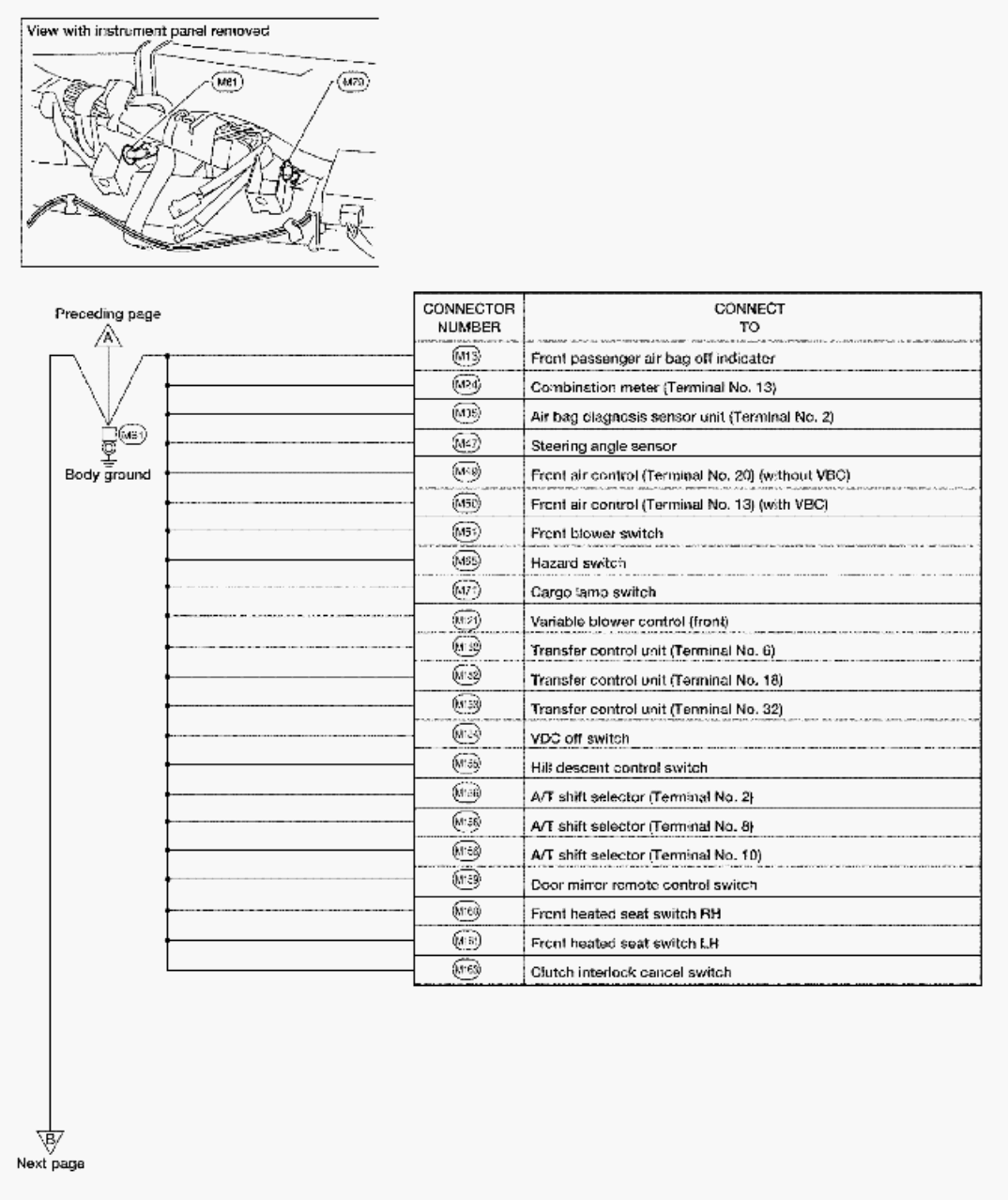

Fig 2: Identifying Ground Distribution - Main Harness (2 Of 3)
G00519373Courtesy of SUZUKI OF AMERICA CORP.

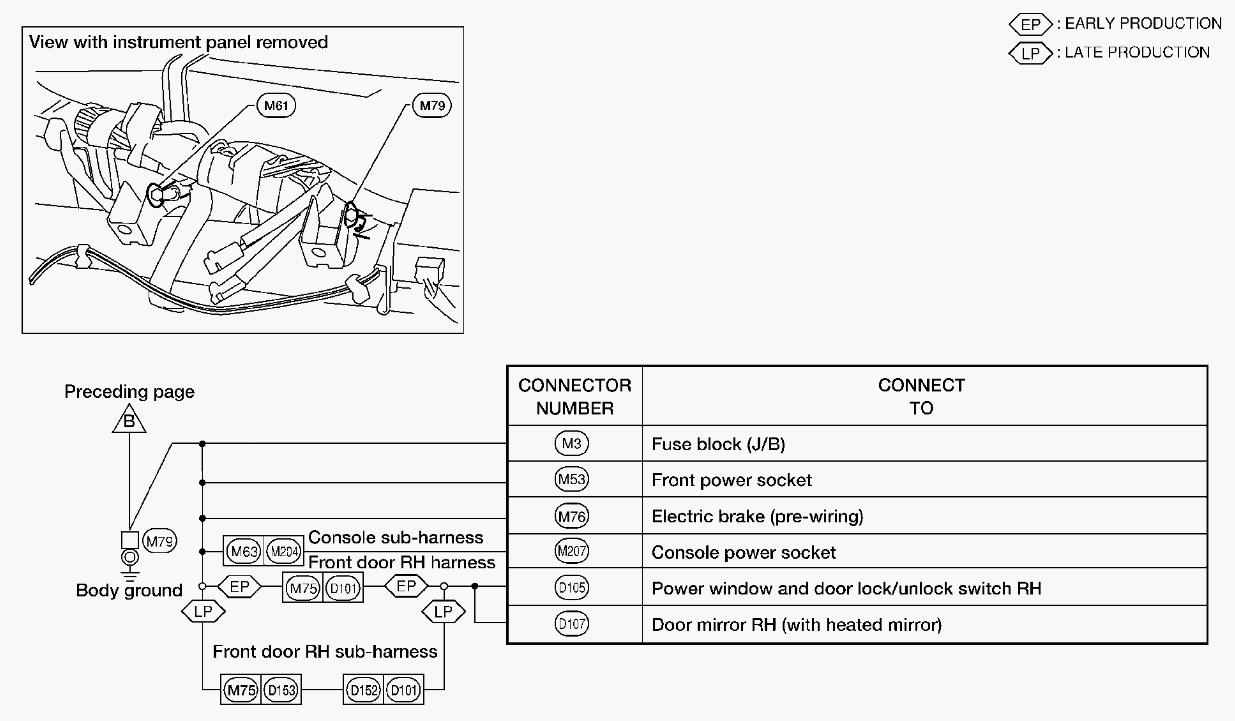

Fig 3: Identifying Ground Distribution - Main Harness (3 Of 3)
G00536546Courtesy of SUZUKI OF AMERICA CORP.
