Center Console Assembly: Exploded View

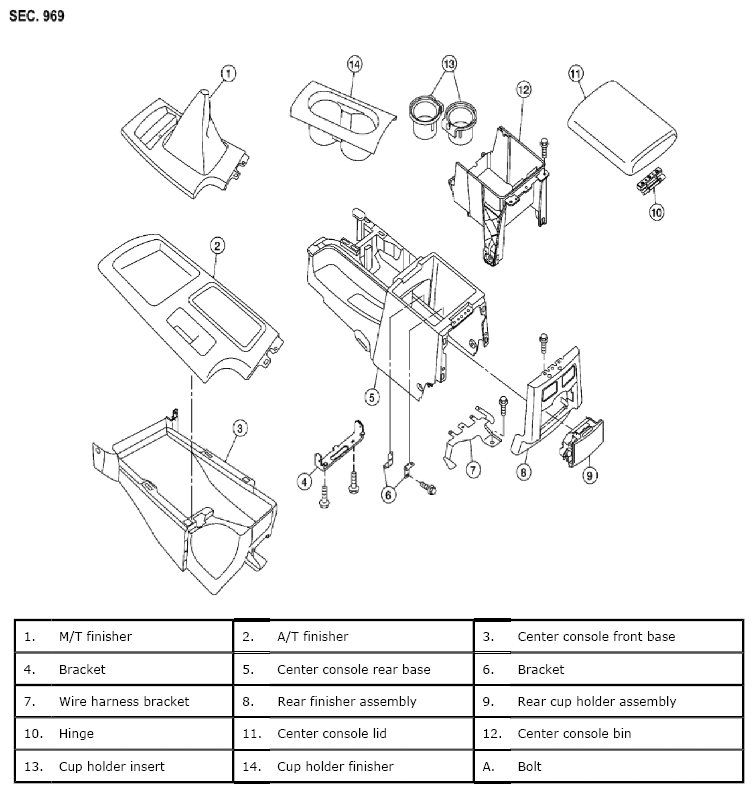

Fig 1: Exploded View Of Center Console Assembly

G06443231

Courtesy of SUZUKI OF AMERICA CORP.
