Disc Brake: Check: Pad

Check for any wear or damage. Repair or replace as necessary.

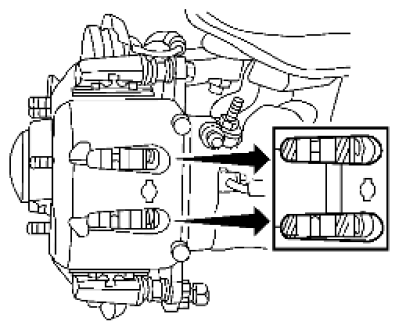

Fig 1: Checking Pad For Any Wear Or Damage

G06440655

Courtesy of SUZUKI OF AMERICA CORP.

Standard thickness : Refer to [ SERVICE DATA AND SPECIFICATIONS ] (front), [ SERVICE DATA AND SPECIFICATIONS ] (rear).

Repair limit thickness : Refer to [ SERVICE DATA AND SPECIFICATIONS ] (front), [ SERVICE DATA AND SPECIFICATIONS ] (rear).
