Keyless Start Control Module Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Remove glove box from instrument panel.
  3. Disconnect connector from keyless start control module (1).
  4. Remove keyless start control module mounting bolt (2) and then remove keyless start control module with its bracket from steering support member.

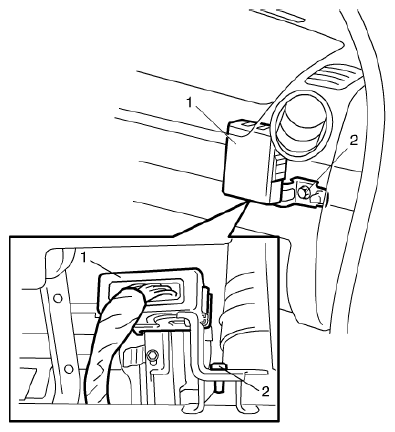

    Fig 1: Identifying Keyless Start Control Module And Mounting Bolt
    G08899797Courtesy of SUZUKI OF AMERICA CORP.
