Starting Motor Components
Starting Motor Components

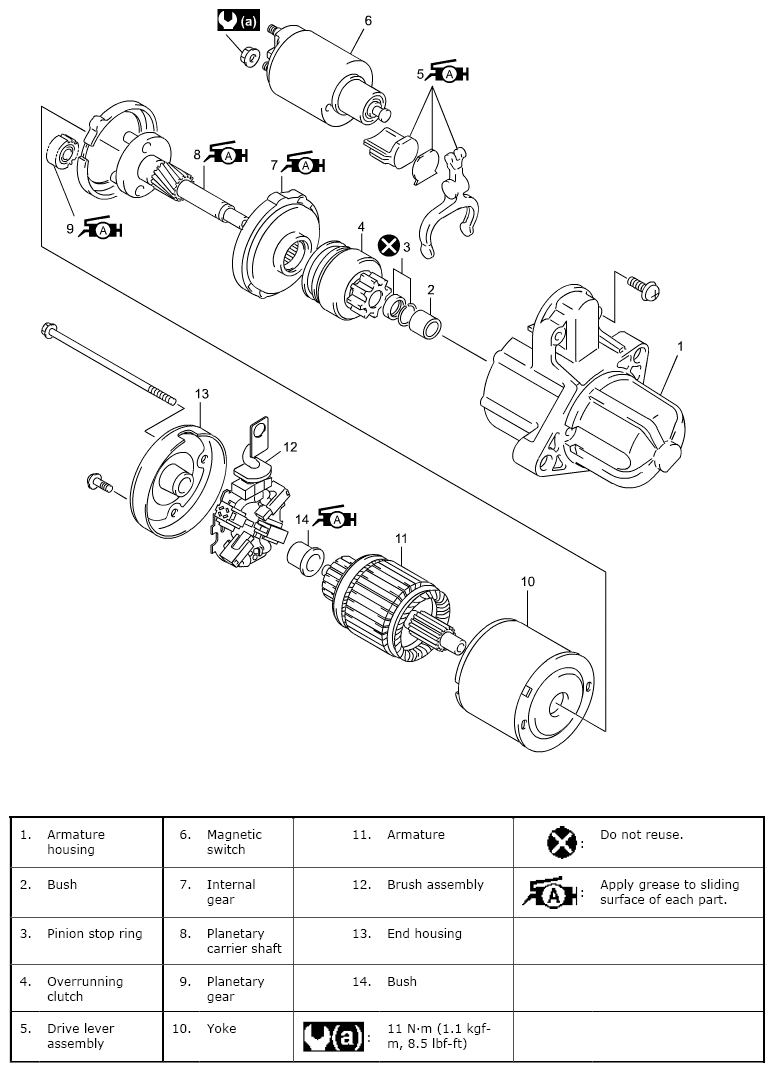

Fig 1: Exploded View Of Starting Motor
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
