Starting Motor Control Relay Inspection
- Disconnect negative (-) cable from battery.

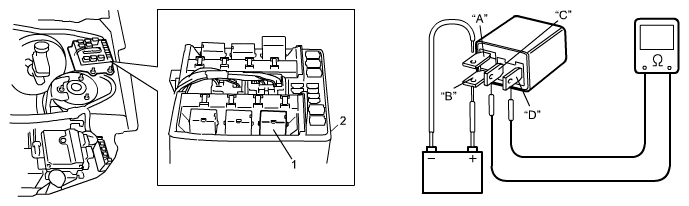

- Remove starting motor control relay (1) from fuse box No. 2.
- Check that there is no continuity between terminal "C" and "D".
If there is continuity, replace starting motor control relay.
- Connect service wire between battery positive (+) terminal and relay terminal "B". Connect service wire between battery negative (-) terminal and relay terminal "A".
Check for continuity between terminal "C" and "D".
If there is no continuity when relay is connected to the battery, replace starting motor control relay.
