Immobilizer Control System Component Location
Immobilizer Control System Component Location

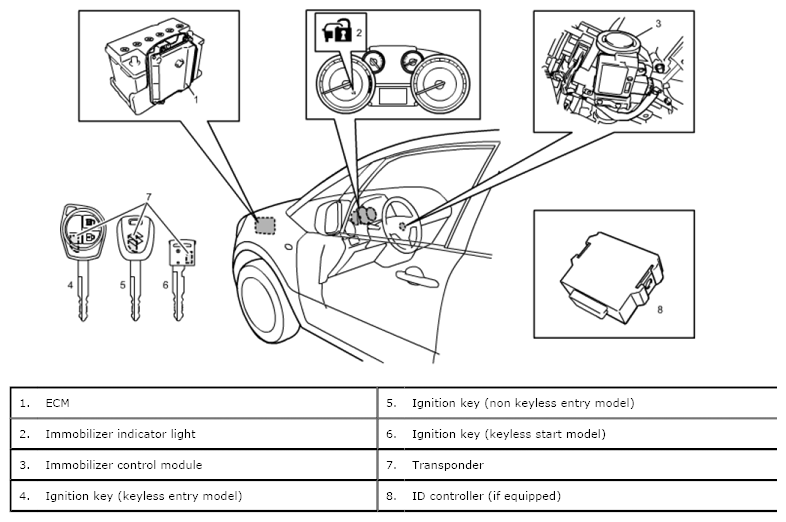

Fig 1: Immobilizer Control System Components Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
