ESP® OFF Switch Inspection

Reference: ESP® OFF SWITCH REMOVAL AND INSTALLATION

Check for continuity between terminals at each switch position.

If check result is not as specified, replace ESP® OFF switch (1).

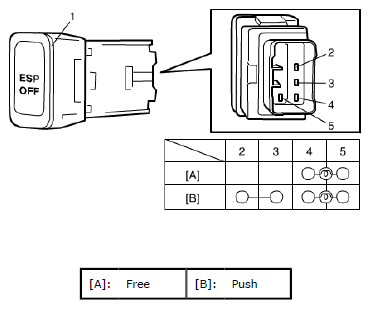

Fig 1: Inspecting ESP® Off Switch

Courtesy of SUZUKI OF AMERICA CORP.
