Reassembling Note for Wiring Harness
>>
Around Engine
>>
Engine harness
Engine harness

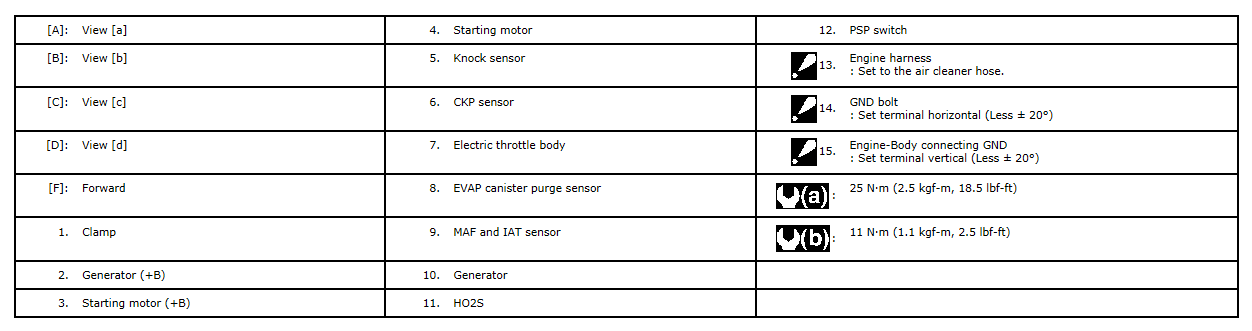

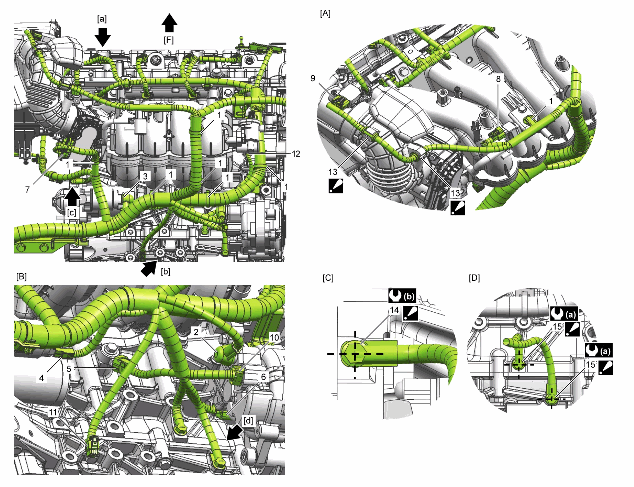

Fig 1: Identifying Engine Harness (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Identifying Engine Harness (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
