Reassembling Note for Wiring Harness
>>
Around Main Floor
>>
Front Part
Front Part

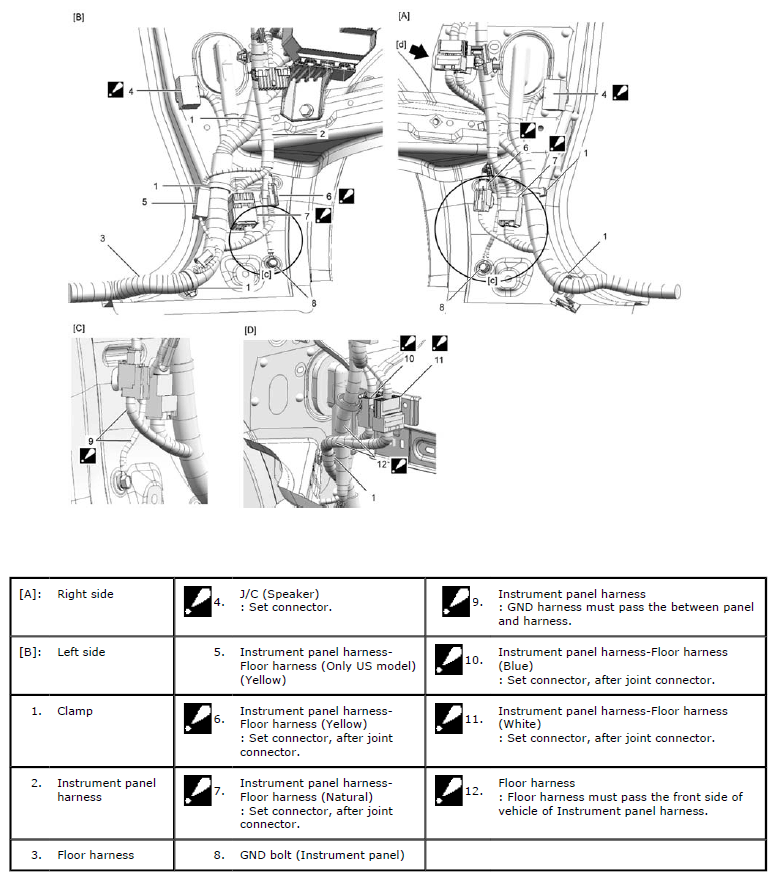

Fig 1: Instrument Panel Harness/Floor Harness (Dash Side Panel)
Courtesy of SUZUKI OF AMERICA CORP.

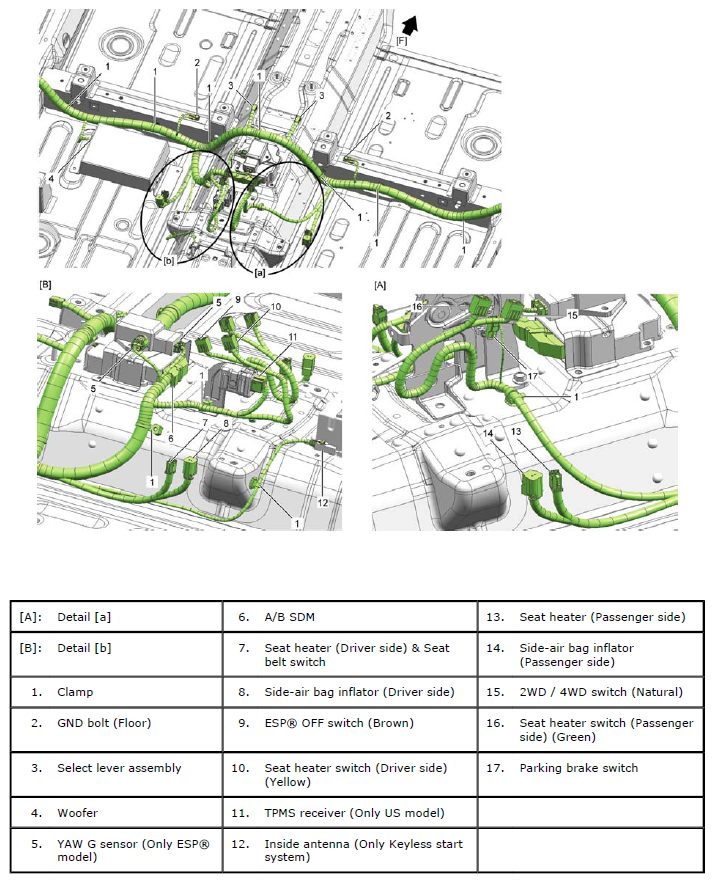

Fig 2: Floor Harness
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
