Generator Removal and Installation: Installation
Reference: GENERATOR COMPONENTS
Reference: GENERATOR INSPECTION
Reverse removal procedure noting the following.

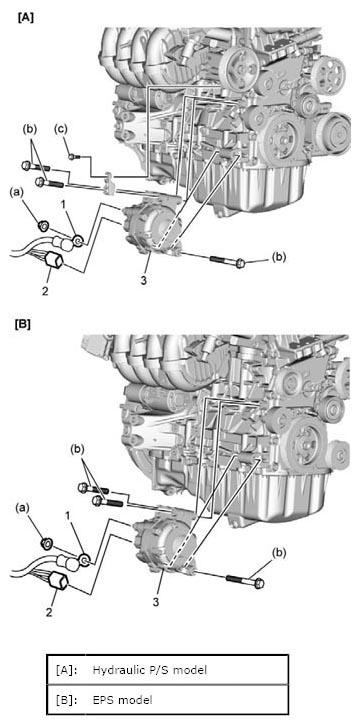

Tighten generator bolts, "B" terminal wire nut and power steering pump stay bolt to specified torques.
Tightening torque
"B" terminal wire nut (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)
Generator bolt (b): 45 N.m (4.6 kg-m, 33.5 lbf-ft)
Power steering pump stay bolt (c): 25 N.m (2.5 kg-m, 18.5 lbf-ft)
