Home >> Suzuki >> 2012 >> SX4 Base >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Repair Instructions >> Starting Motor Components

Starting Motor Components

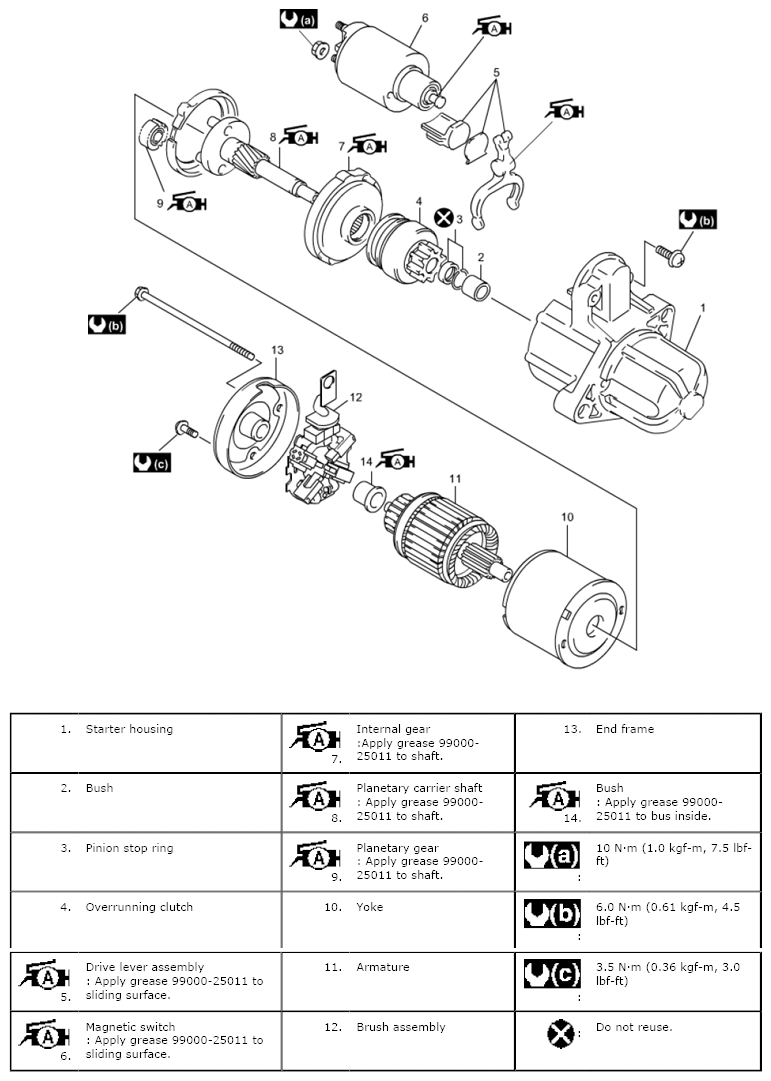

Fig 1: Identifying Starting Motor Replacement Components

G06867221

Courtesy of SUZUKI OF AMERICA CORP.
