Camshaft Position (CMP) Sensor Removal and Installation: Installation

  1. Install CMP sensor to cylinder head.

    Tightening torque

    CMP sensor bolt (a): 11 N.m (1.1 kg-m, 8.0 lbf-ft)

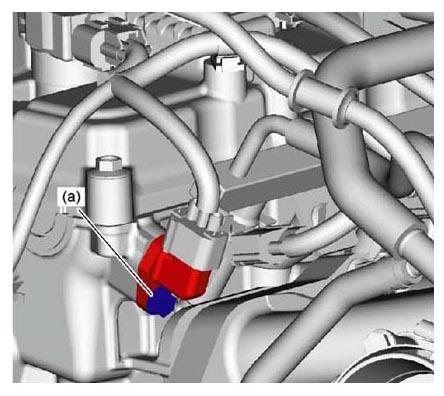

    Fig 1: Identifying CMP Sensor Bolt
    G06868201Courtesy of SUZUKI OF AMERICA CORP.
  2. Connect connector to CMP sensor securely.
  3. Install air cleaner case. See AIR CLEANER ASSEMBLY REMOVAL AND INSTALLATION
  4. Connect negative cable to battery.
