Knock Sensor Removal and Installation: Installation
Reference: KNOCK SENSOR INSPECTION
Reverse removal procedure noting the following.

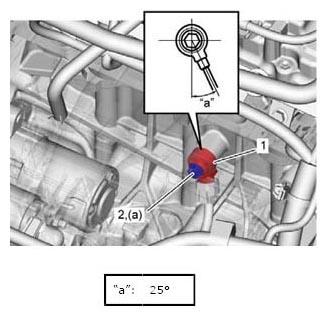

- Install knock sensor (1) as shown in figure.
- Tighten knock sensor bolt (2) to specified torque.
Tightening torque
Knock sensor bolt (a): 25 N.m (2.5 kg-m, 18.5 lbf-ft)
