EVAP Leak Check Module Removal and Installation: Removal

  1. Remove EVAP canister with EVAP leak check module referring to EVAP CANISTER REMOVAL AND INSTALLATION .
  2. Remove EVAP leak check module (1) from EVAP canister (2).

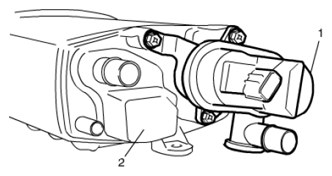

    Fig 1: Identifying EVAP Leak Check Module And EVAP Canister
    G06866893Courtesy of SUZUKI OF AMERICA CORP.
