EVAP System Components
EVAP System Components

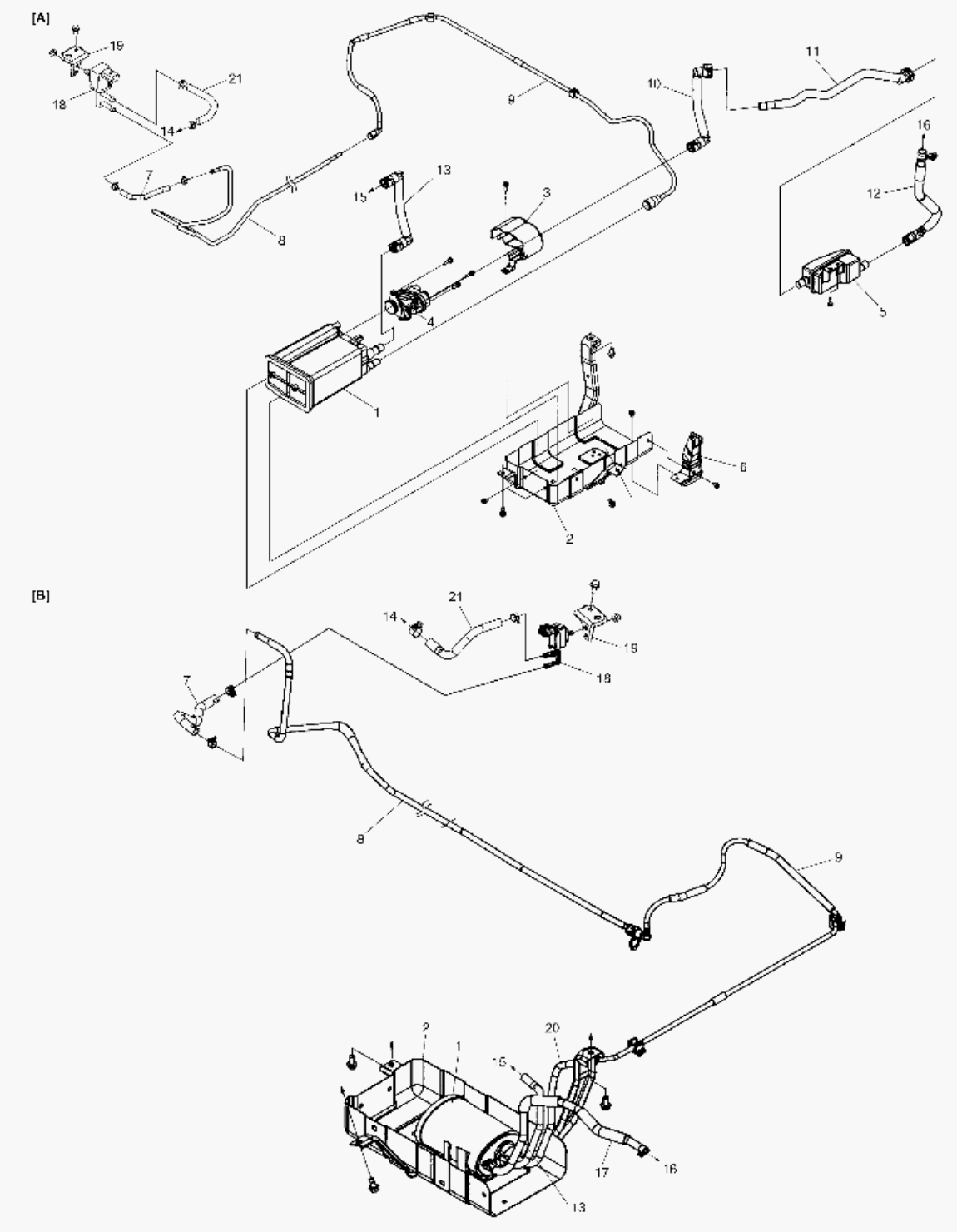

Fig 1: Identifying EVAP System Replacement Components (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

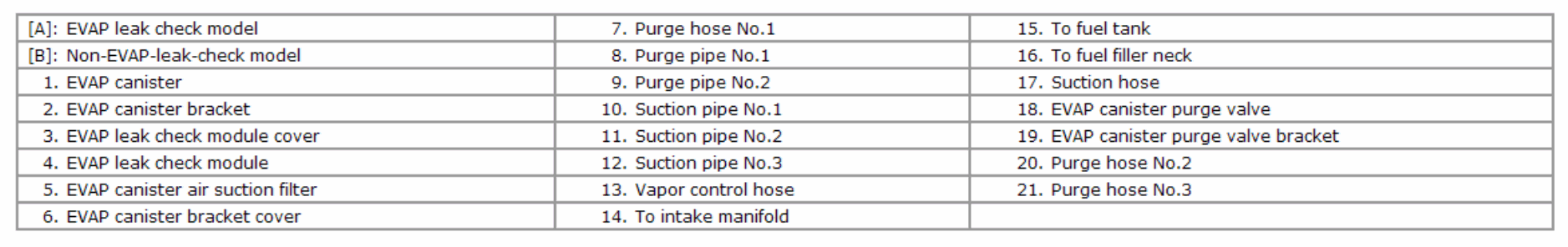

Fig 2: Identifying EVAP System Replacement Components (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
