Kizashi Base, Standard Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Start System
>>
Schematic and Routing Diagram
>>
Keyless Start Control Module Input/Output Diagram
Keyless Start Control Module Input/Output Diagram

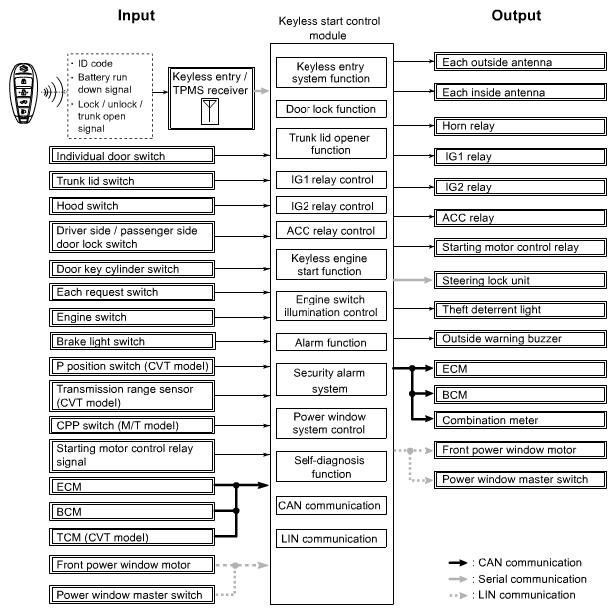

Fig 1: Keyless Start Control Module Input / Output Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
