Starting Motor Components
Starting Motor Components

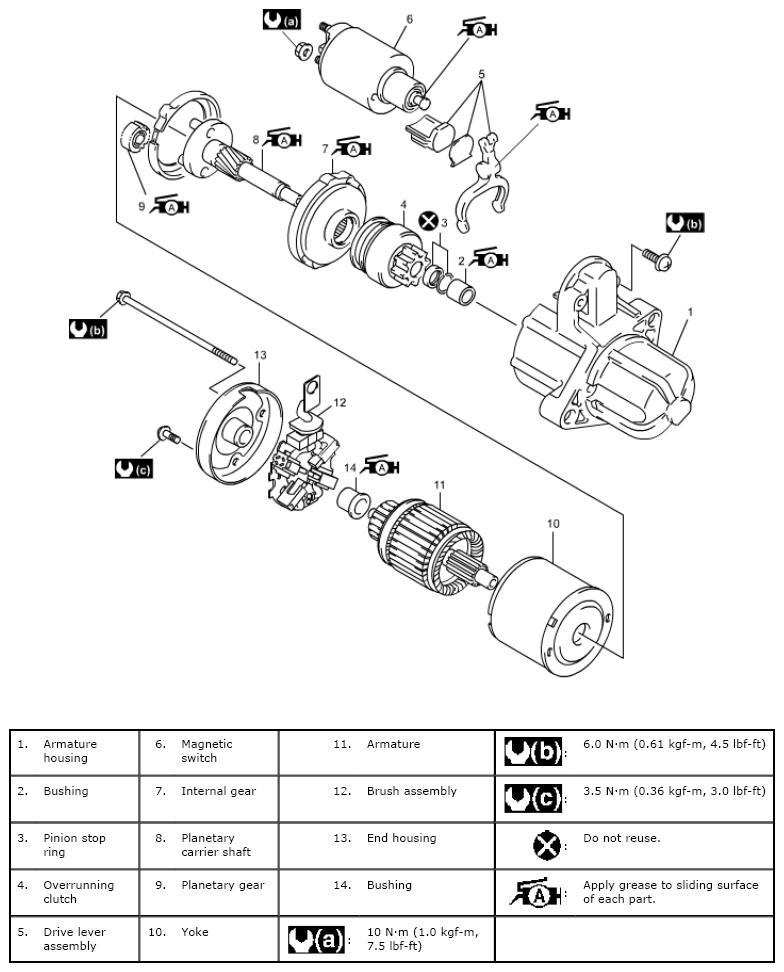

Fig 1: Starting Motor Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
