Module - Sunroof Controller - Remove And Replace: Removal

  1. Remove the body control module (BCM), refer to MODULE - BODY CONTROLLER - BCM (REMOVE AND REPLACE)

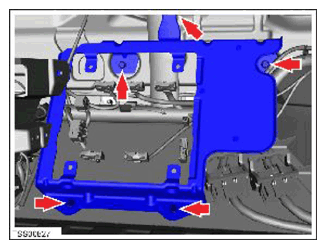

  2. Remove the 4 bolts and 1 nut that secure the sunroof controller mounting bracket to the body (torque 8 N.m).
    G15034764Courtesy of TESLA, INC.
  3. Carefully turn the mounting bracket over.

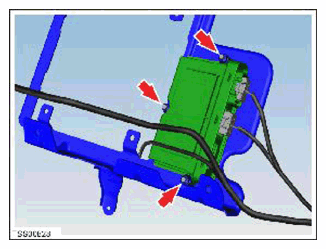

  4. Remove the 3 nuts that secure the controller to the bracket (torque 5 N.m).
    G15034765Courtesy of TESLA, INC.

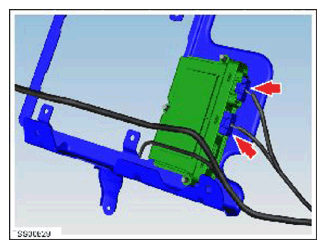

  5. Disconnect the 2 controller harness connectors.
    G15034766Courtesy of TESLA, INC.

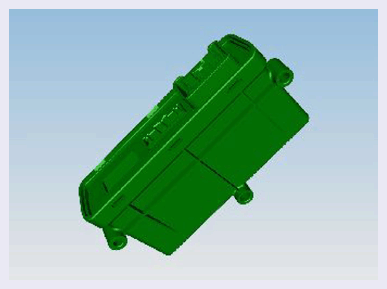

  6. Remove the controller from the mounting bracket.
    G15034767Courtesy of TESLA, INC.
