Radiator Cap

Visually inspect radiator cap. If cap looks okay, connect pressure tester to cap. See Fig 1. Pressurize tester to full radiator cap specification. Replace cap if it fails to hold pressure.

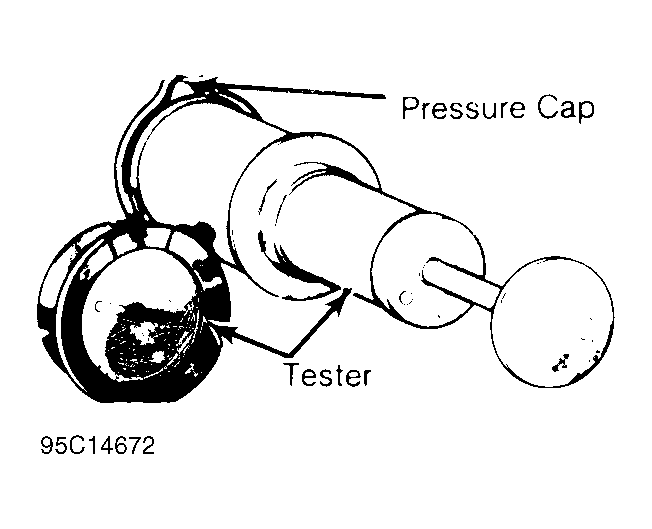

Fig 1: Pressure Testing Radiator Cap
G95C14672
