Power Valve Control System

See applicable power valve control system diagnostic chart and perform test as outlined. See Figs. Fig 1and Fig 2.

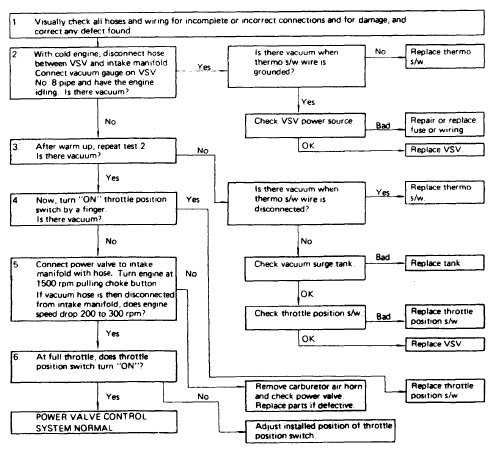

Fig 1: 1975-76 Power Valve Control System Test (2F Engine)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

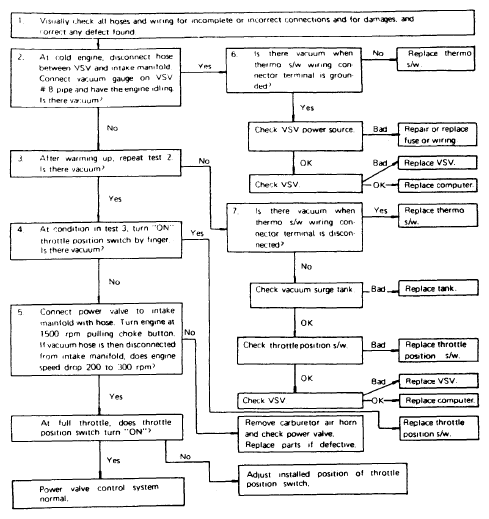

Fig 2: 1977 Power Valve Control System Test (Calif. 2F Engine)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
