Dual Diaphragm Distributor

See applicable dual diaphragm system diagnostic chart and perform test as outlined. See Figs. Fig 1and Fig 2.

NOTE: Test procedures for 1975 models not available at time of publication.

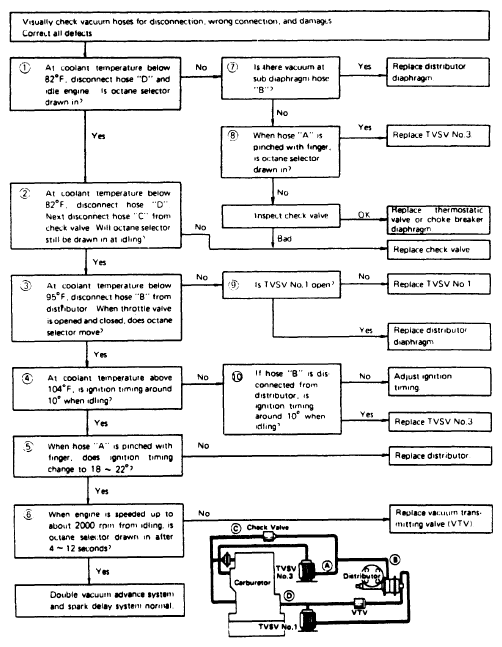

Fig 1: 1976 Dual Diaphragm System Test
G09350674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

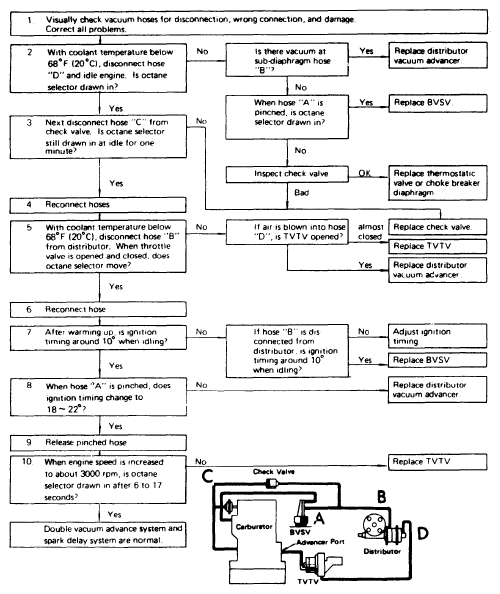

Fig 2: 1977 Dual Diaphragm System Test
G09350675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
