1976-77 Models

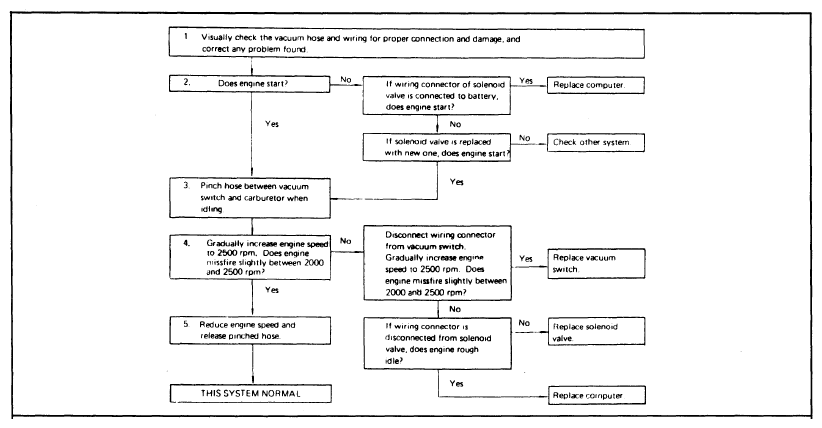

See applicable throttle positioner system diagnostic chart and perform throttle positioner system test as outlined. See Figure.

NOTE: On 1978-79 models, perform step 1)  quickly to avoid overheating catalytic converter.
