Vacuum Switch

Disconnect wiring connector from switch. Check for continuity between terminal and body of switch with engine stopped. With engine running there should be no continuity.

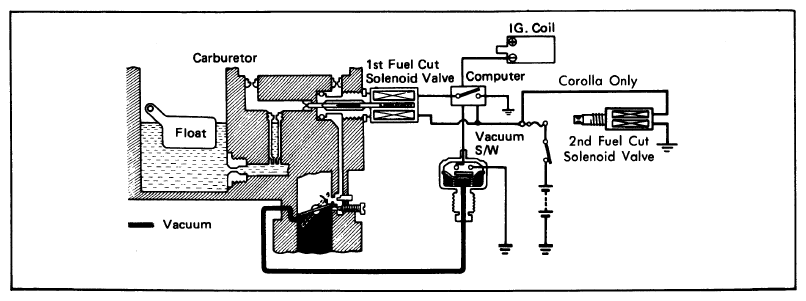

Fig 1: Schematic of Deceleration Fuel Cut System (All Except Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

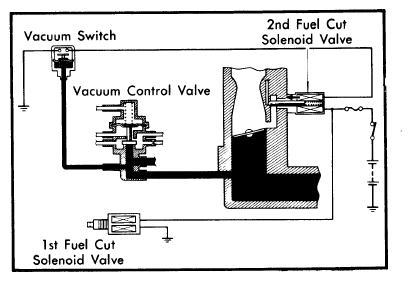

Fig 2: Tercel Deceleration Fuel Cut System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
