Base Ignition Timing Specifications — 1982 Toyota Corolla DX, 2D Hatchback Service Manual ~ lemon-mirror

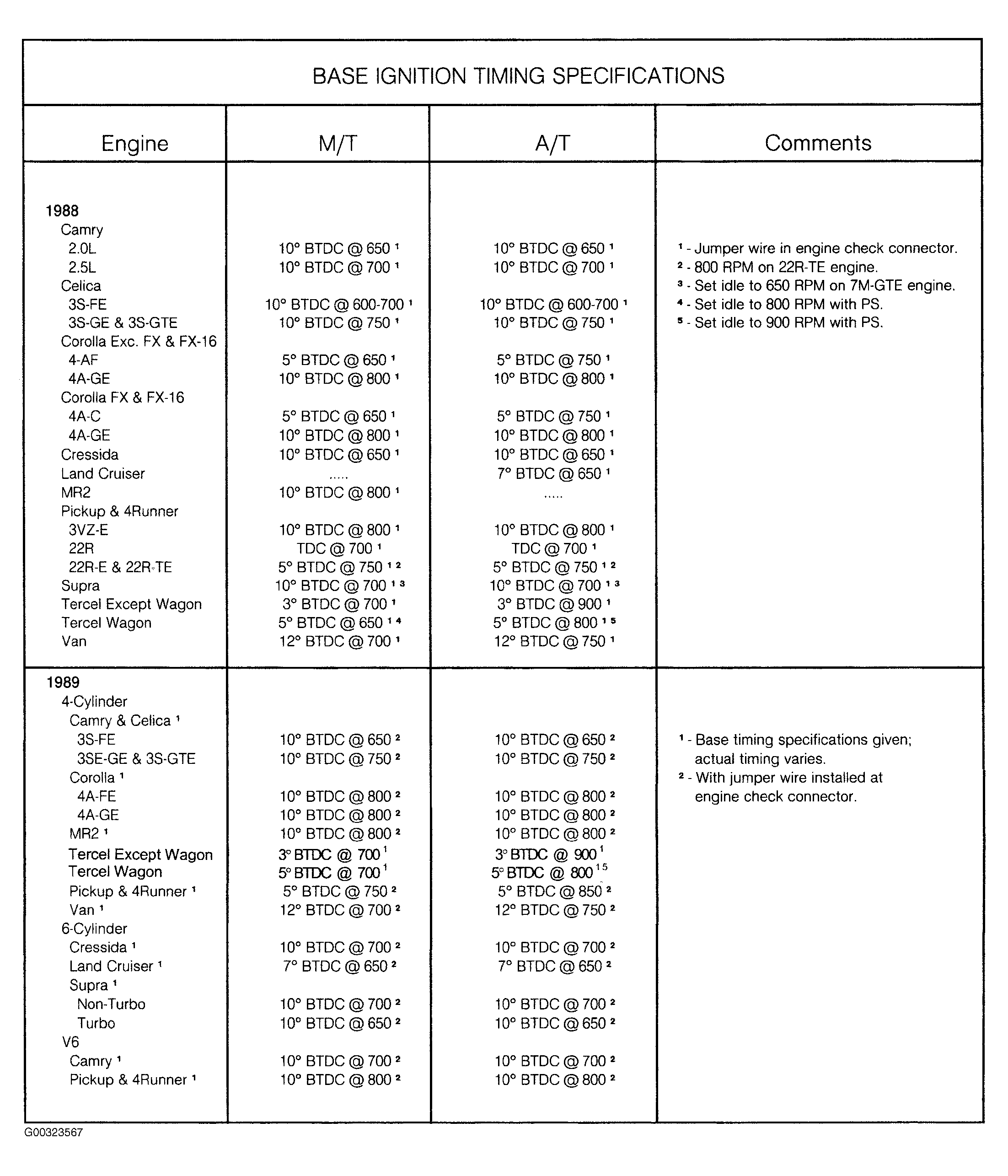

Fig 1:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

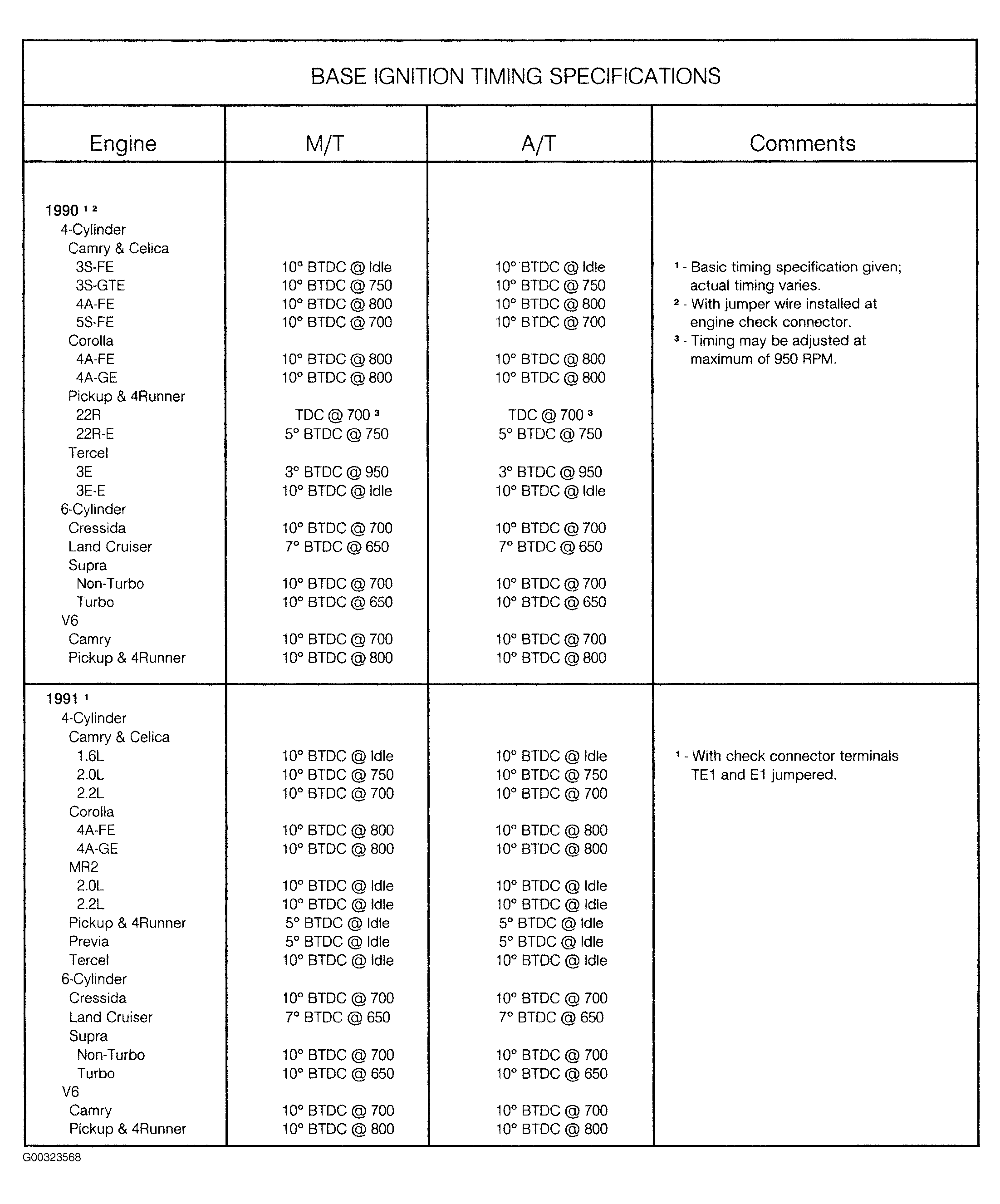

Fig 2:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7:

Fig 8:

Fig 9:

Fig 10:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
