A/C Switch Check
A/C Switch Check

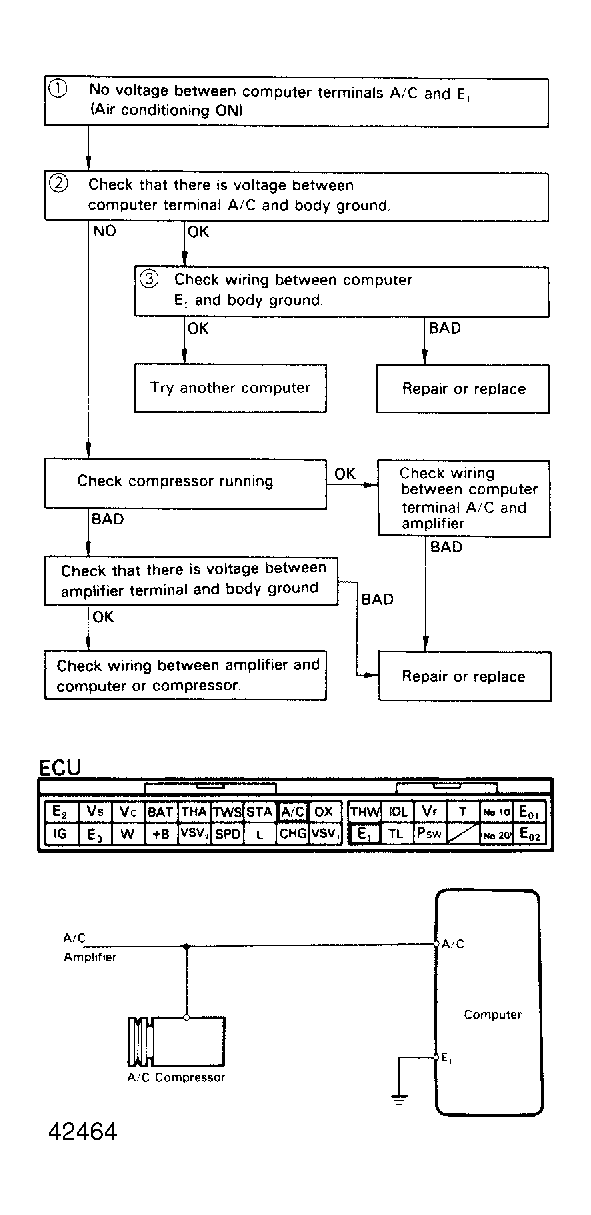

Fig 1: A/C Switch Check, Terminals A/C - E
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
