ECS Engine Control System: Wiring Diagram

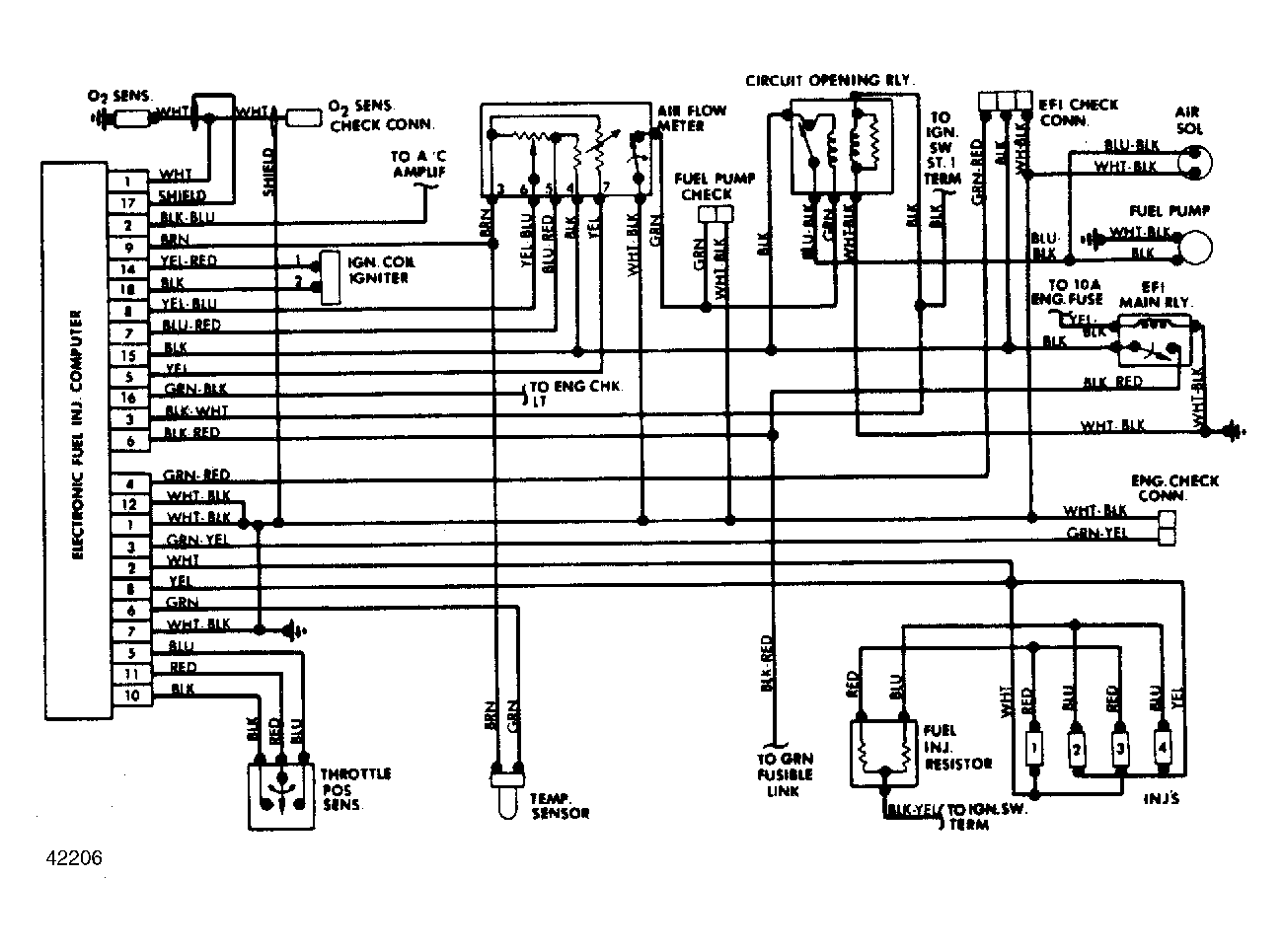

Fig 1: ECS Wiring Diagram
G42206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
