"Check Engine" Lamp Circuit Check

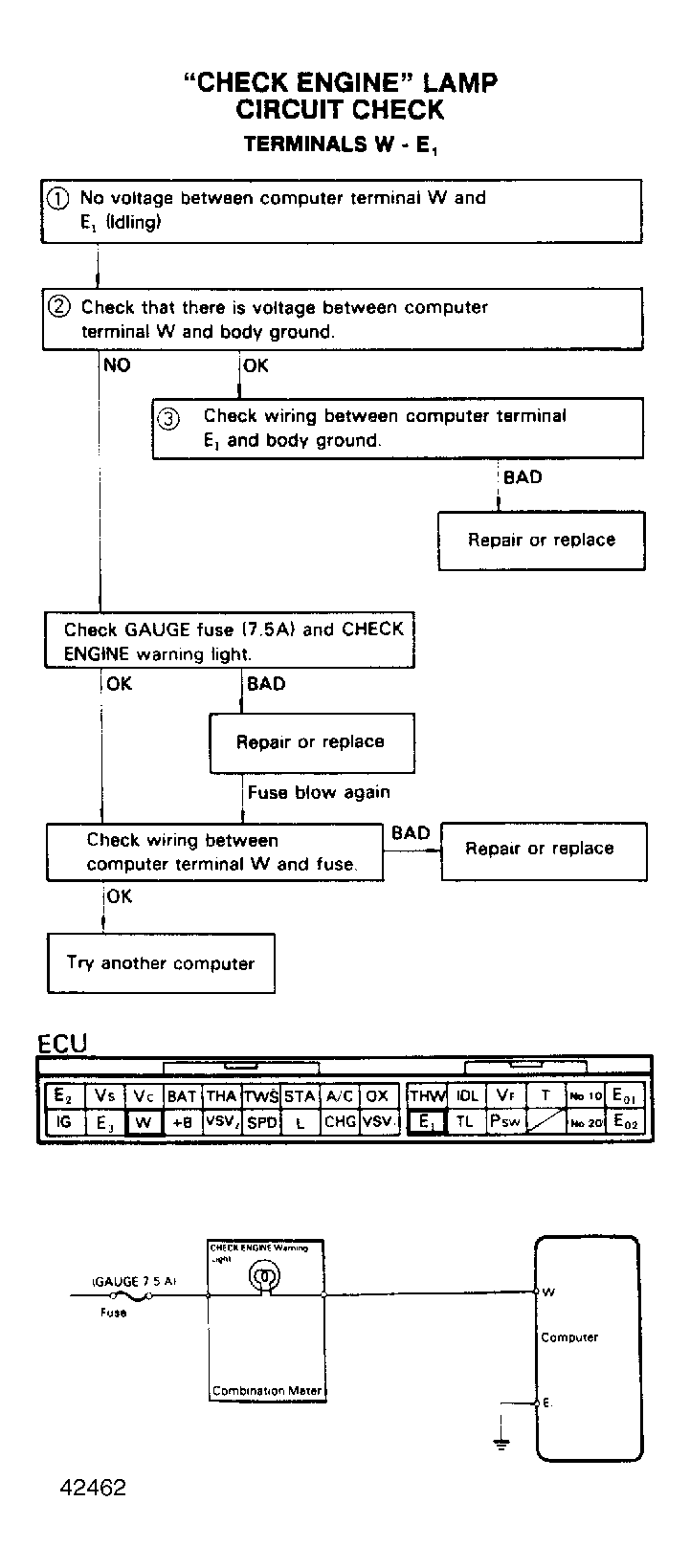

Fig 1: "CHECK ENGINE" Lamp Circuit Check, Terminals W - E1

G42462

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
