Trouble Code 7 - Throttle Position Sensor & Circuit
Trouble Code 7 - Throttle Position Sensor & Circuit

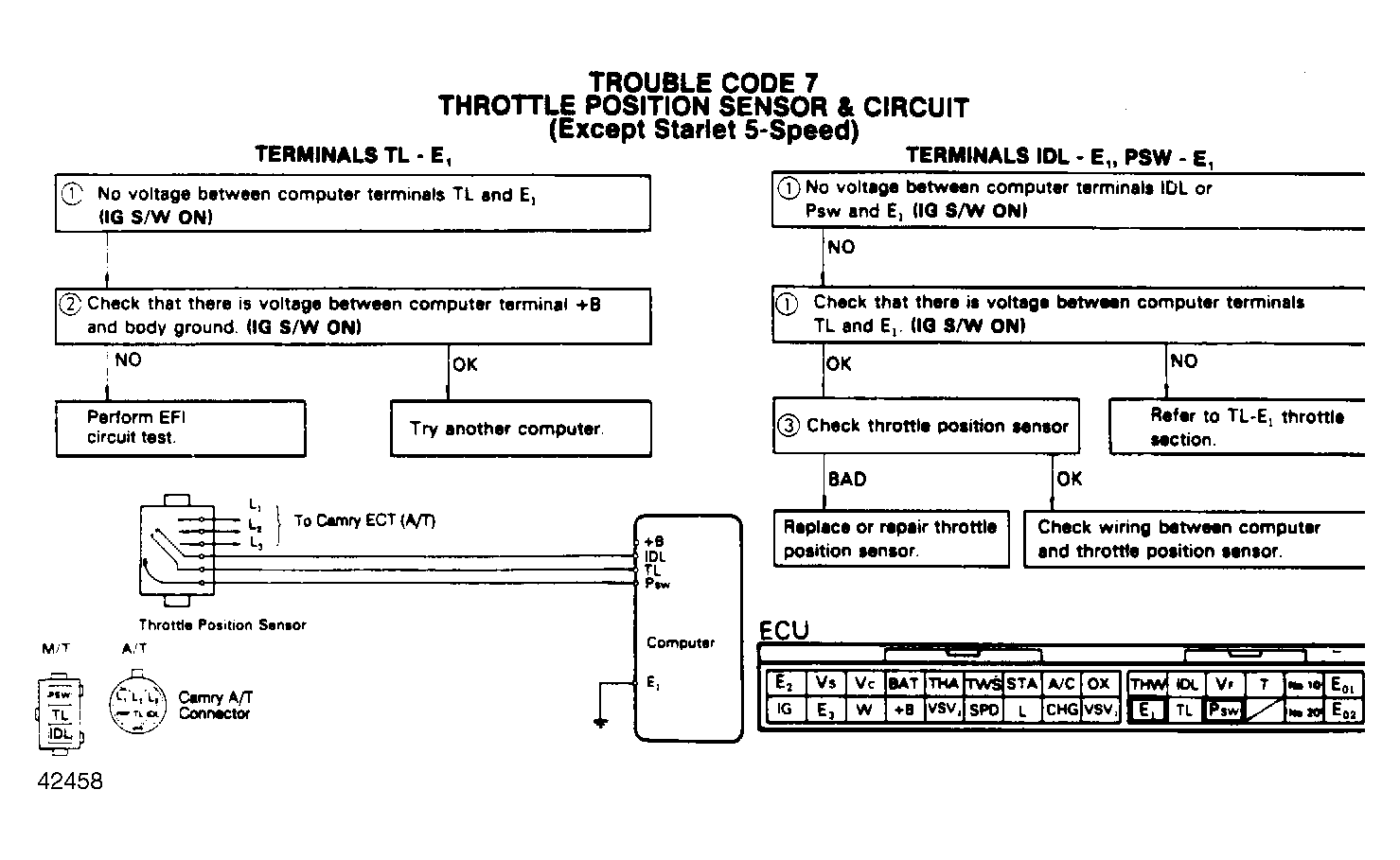

Fig 1: Trouble Code 7, Terminals TL - E1 & IDL - E1, PSW - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
