ECS Engine Control System: Wiring Diagram

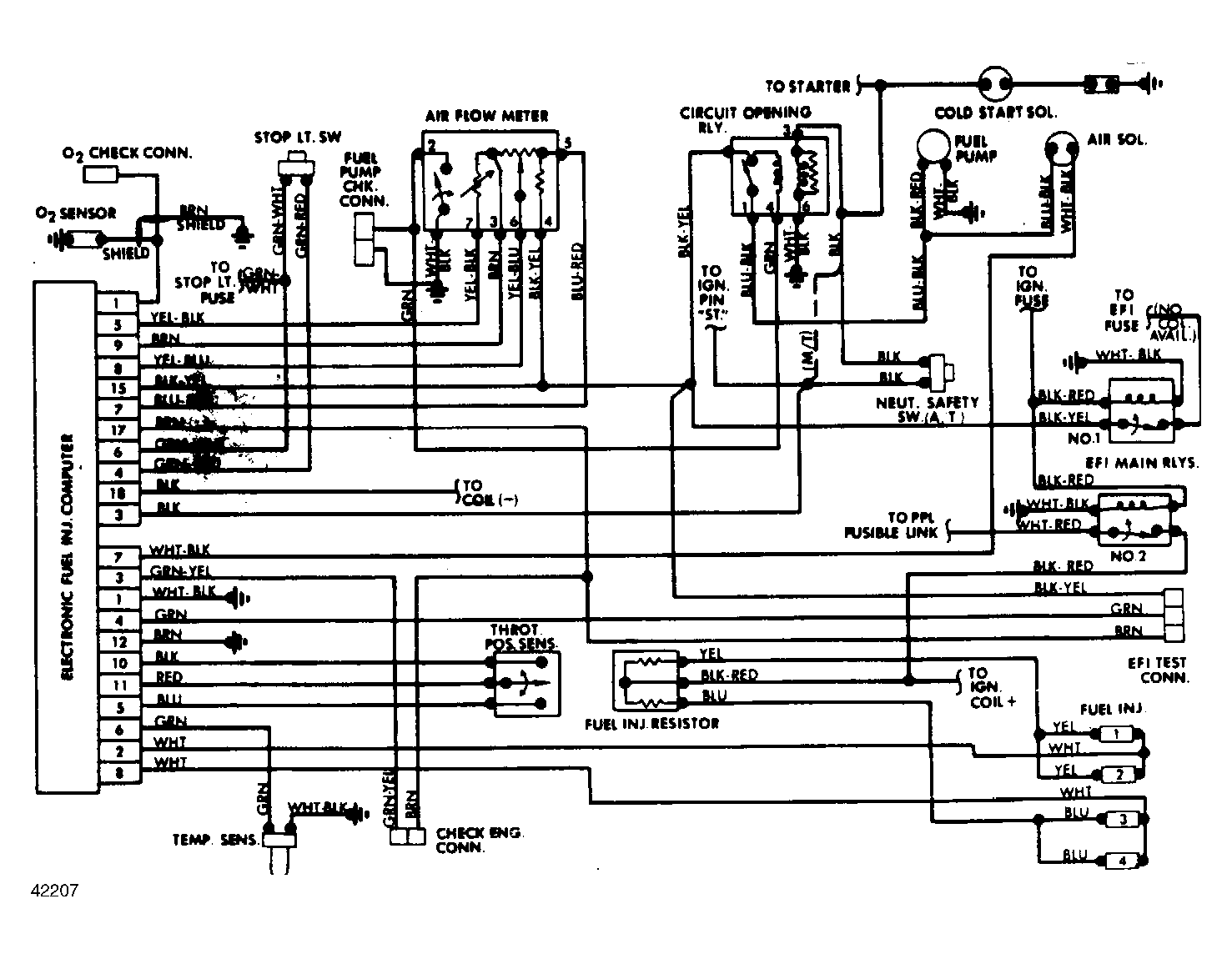

Fig 1: ECS Wiring Diagram

G42207

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
