Injector Circuits Check

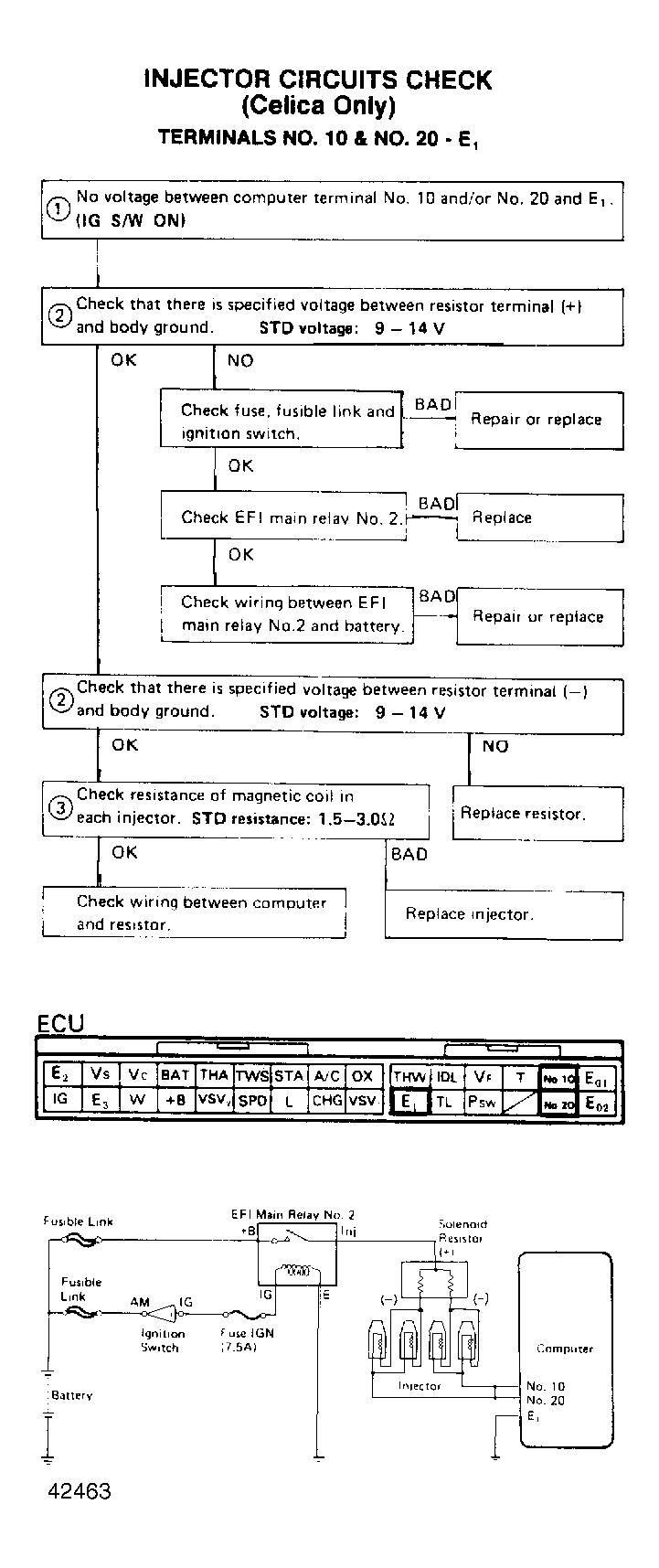

Fig 1: Injector Circuits Check, Terminals No. 10 & No. 20 - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
