Air Suction System: Operation

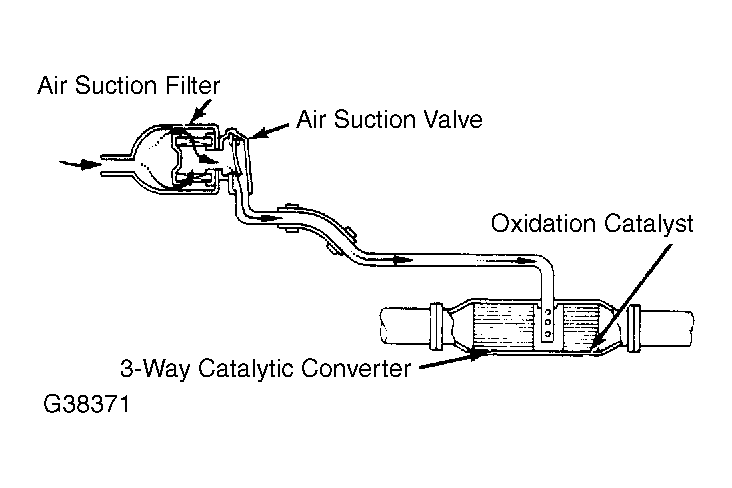

Air is drawn through the air filter and air suction (AS) valve into exhaust manifold on Tercel (Calif. Man. Trans.), and into catalytic converter on Corolla and Tercel (Federal Man. Trans.) models.
