ECS Engine Control System: Wiring Diagram

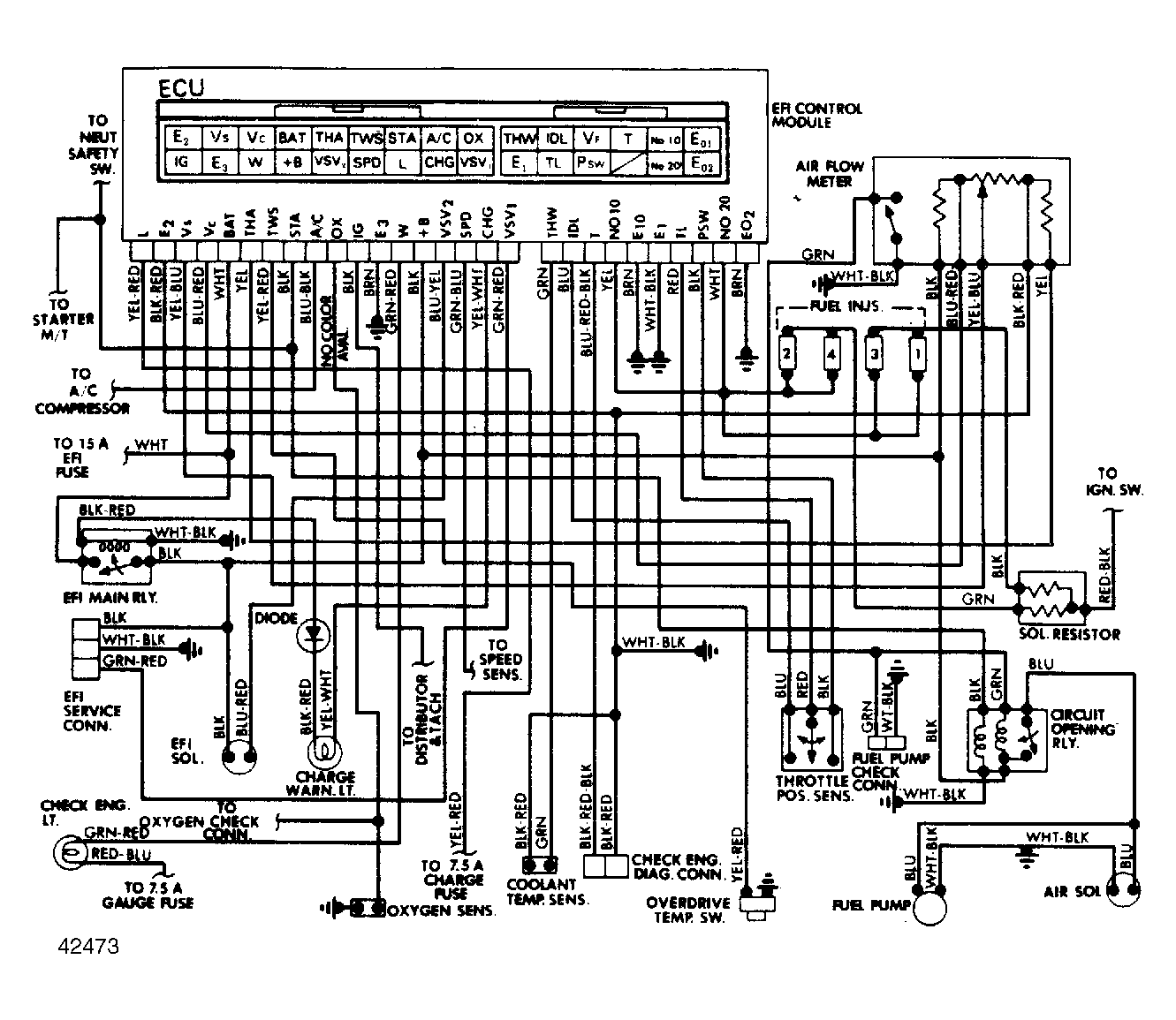

Fig 1: Van ECS Wiring Diagram

G42473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
