Trouble Code 2 Blinks Airflow Meter & Circuit: Notes

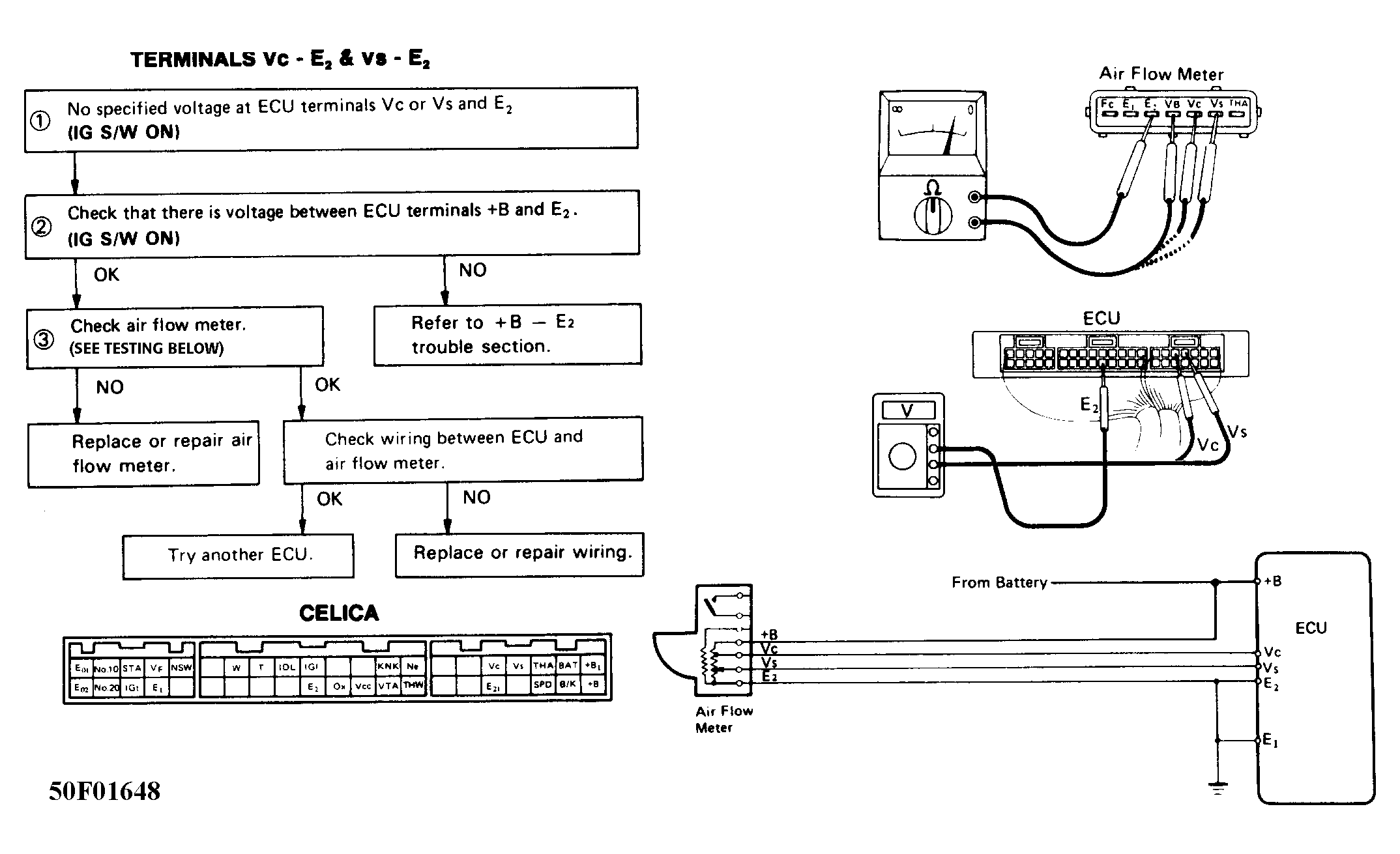

Fig 1: Terminals Vc - E2 & Vs - E2 See Text Below For Airflow Meter Testing.

G50F01648

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
