Home >> Toyota >> 1985 >> Celica ST >> Repair and Diagnosis >> Engine Performance >> System >> TCCS System >> System Testing >> Trouble Code 3 Blinks IGNITOR & Circuit

Trouble Code 3 Blinks IGNITOR & Circuit

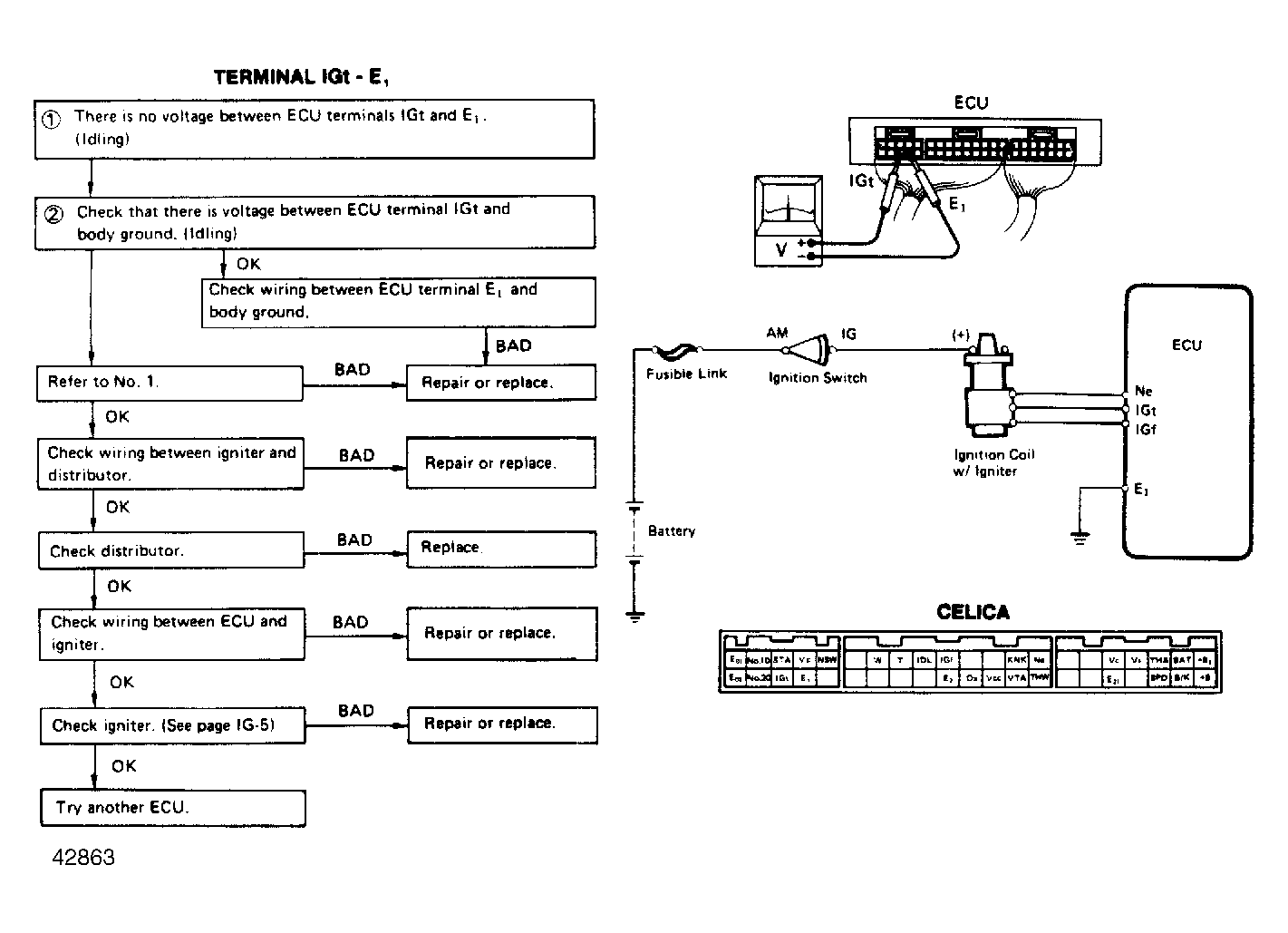

Fig 1: Terminal IGt - E1
G42863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
