Trouble Code 7 Blinks TPS Sensor & Circuit

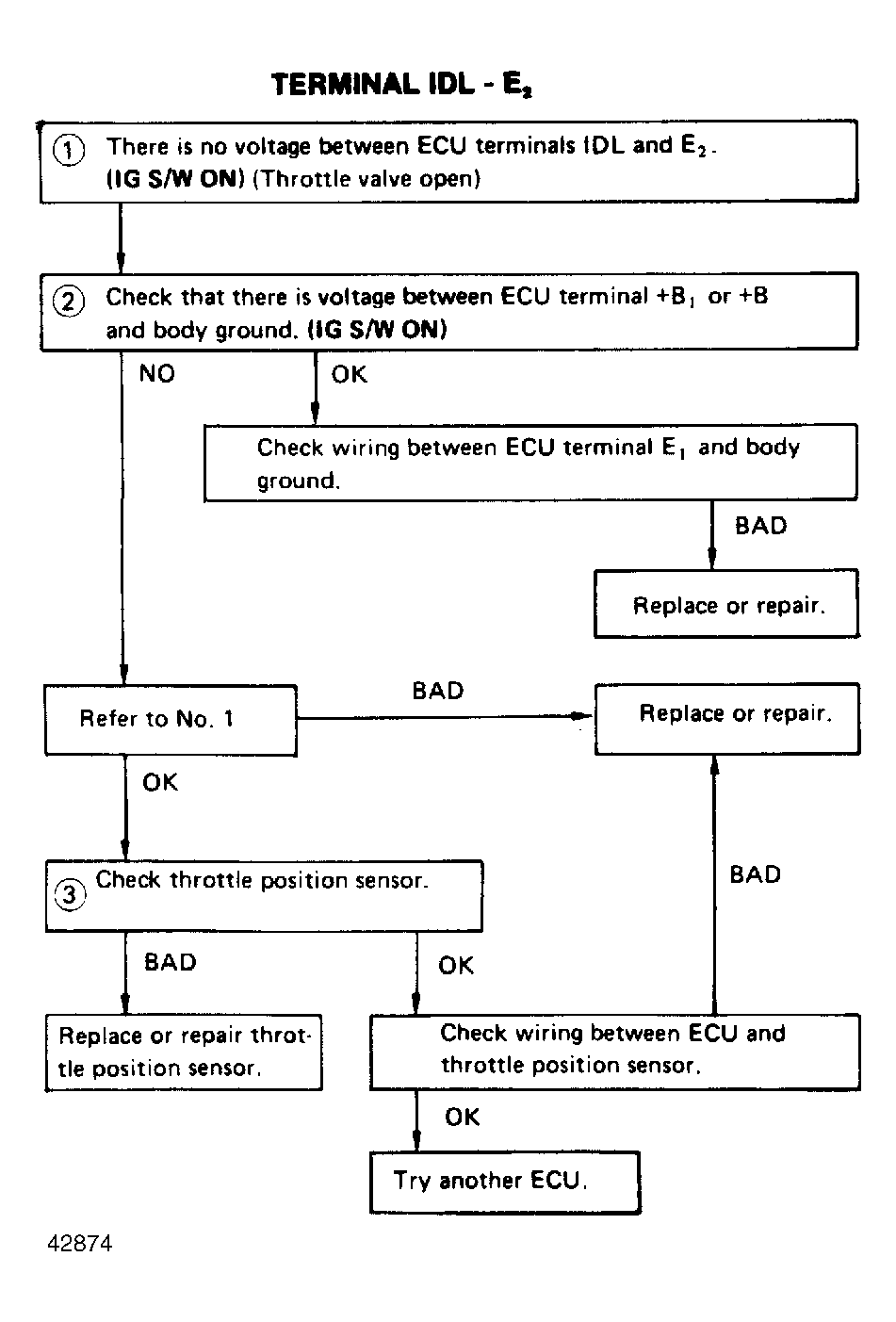

Fig 1: Terminal IDL - E2

G42874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

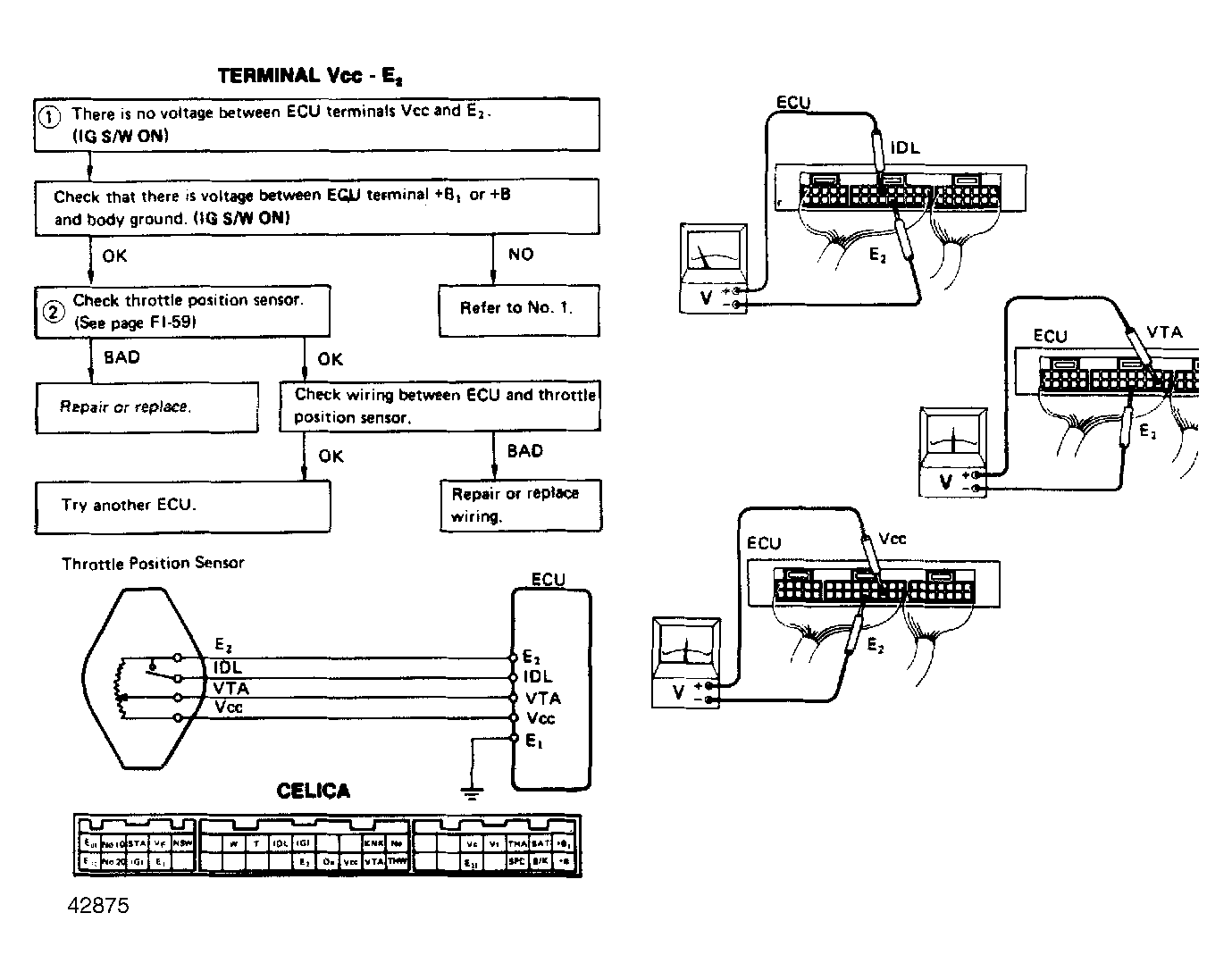

Fig 2: Terminal Vcc - E2

G42875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
