Maintenance Information
>>
Service Point Locations
Service Point Locations

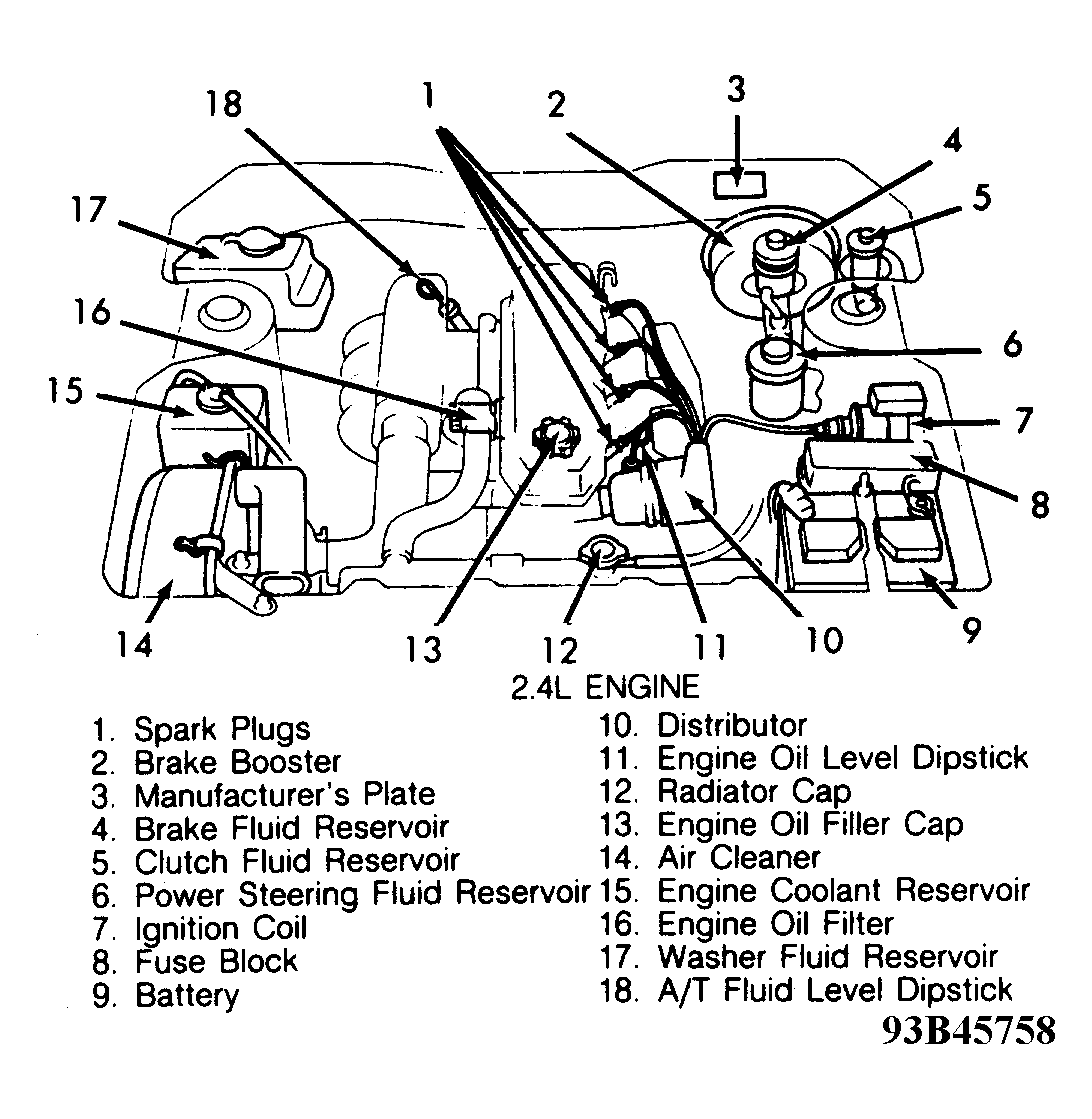

Fig 1: Service Point Locations (2.4L 4-Cylinder Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

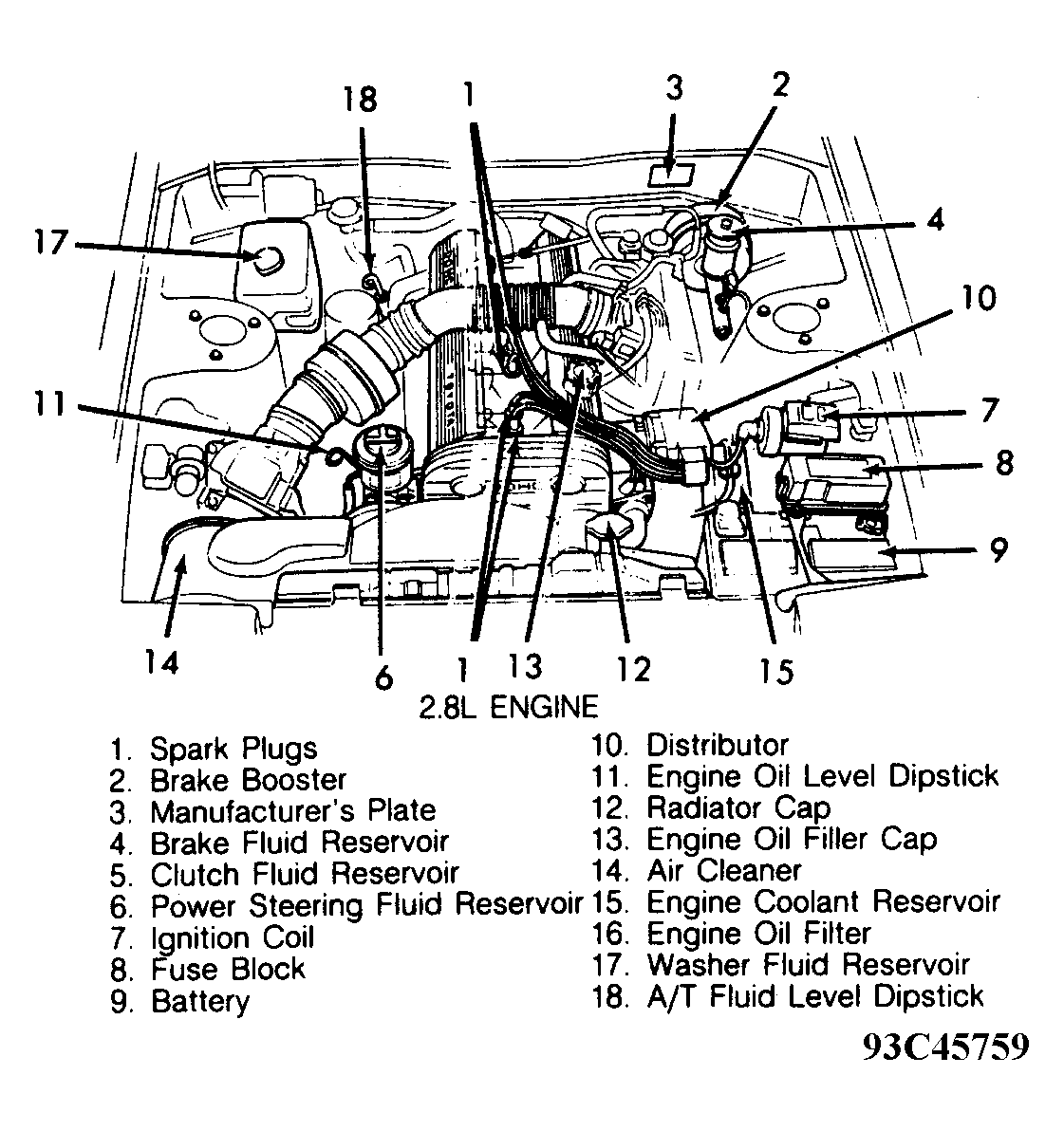

Fig 2: Service Point Locations (2.8L 6-Cylinder Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
