Trouble Code 14 IGNITOR & Circuit

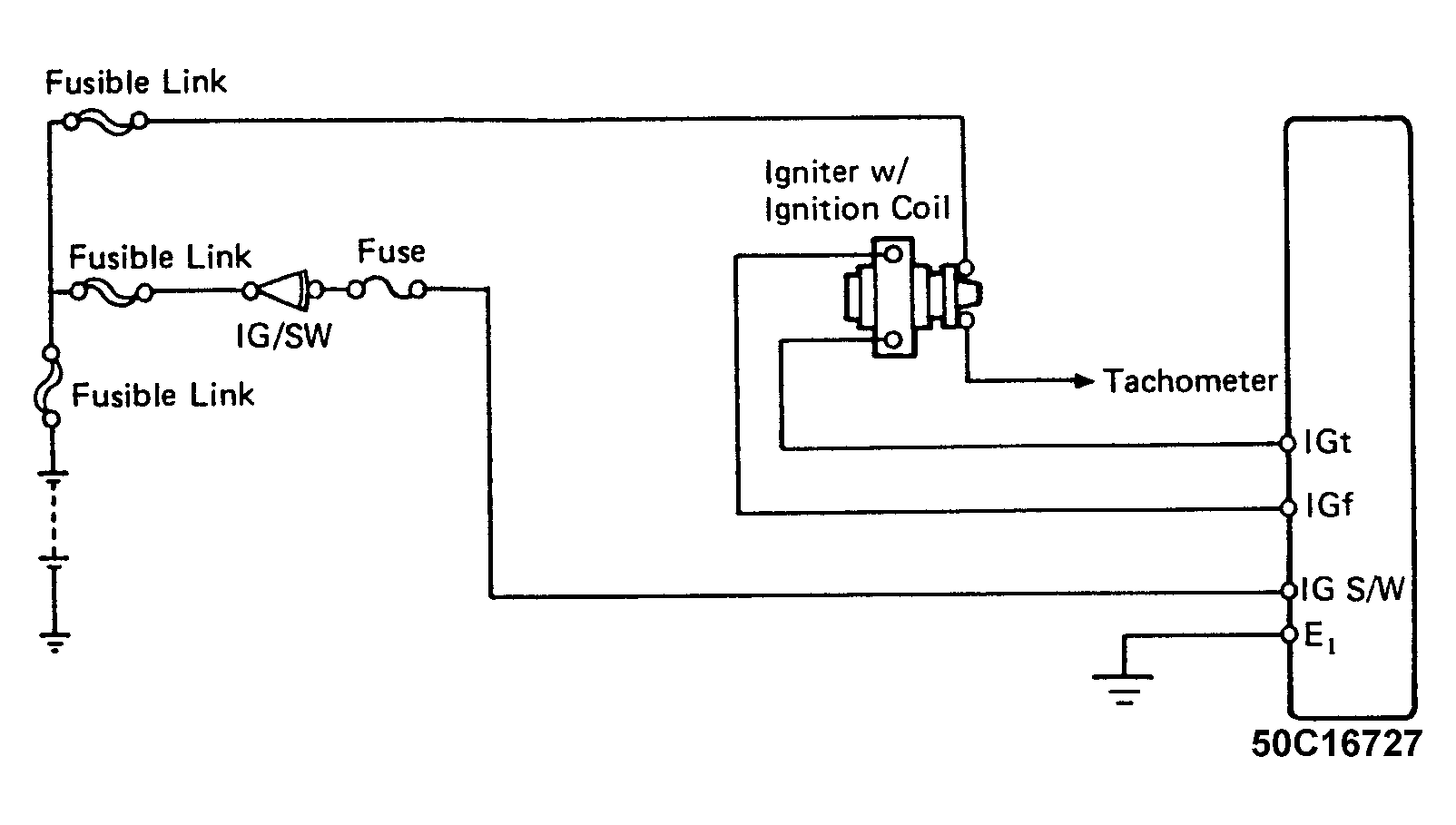

Fig 1: Trouble Code 14 Schematic, Terminals IGt - E1
G50C16727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

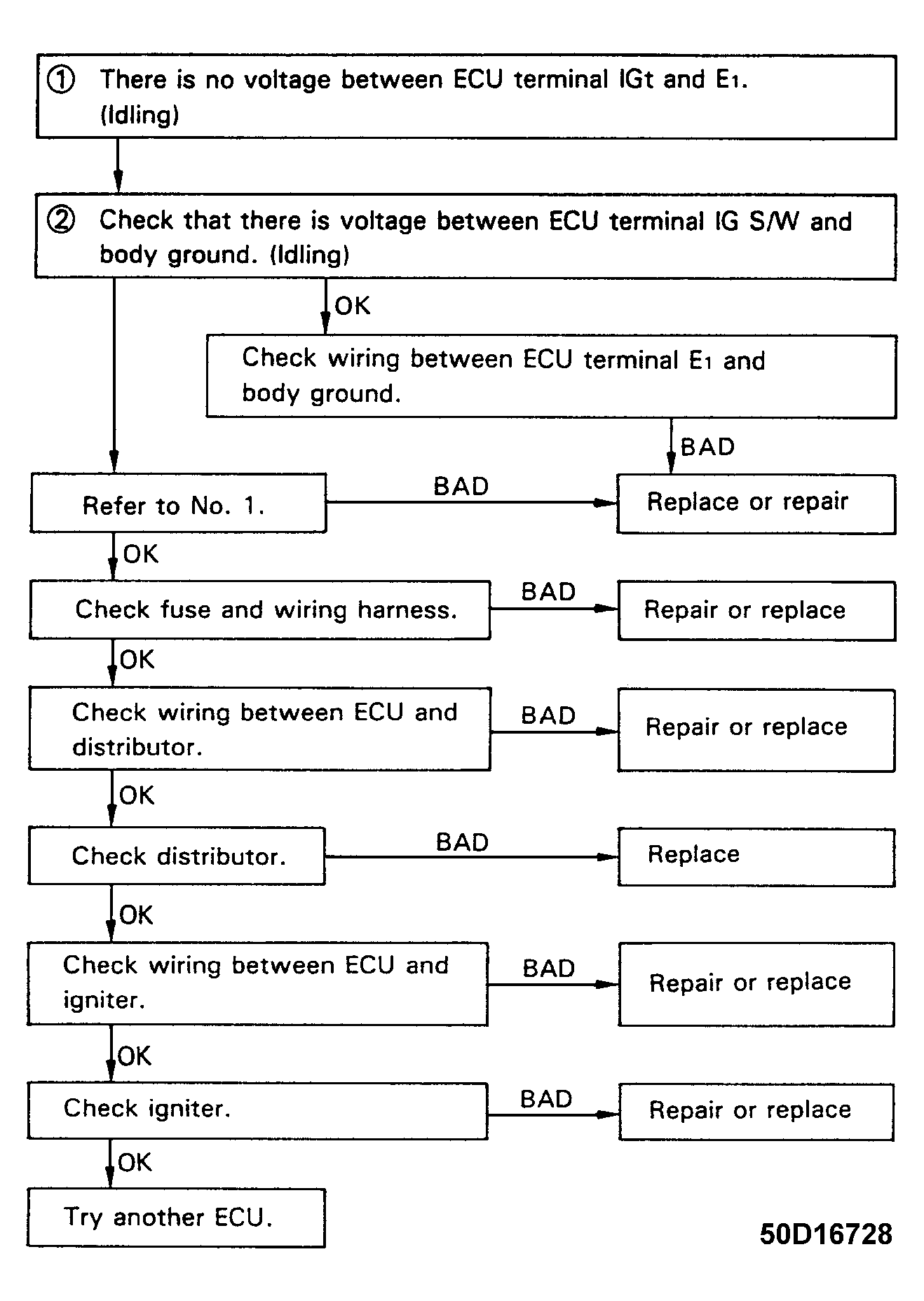

Fig 2: Trouble Code 14 Flow Chart, Terminals IGt - E1
G50D16728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
