Corolla LE, 4D Hatchback
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TCCS System (RWD)
>>
System Testing
>>
Injector Circuits Check
Injector Circuits Check

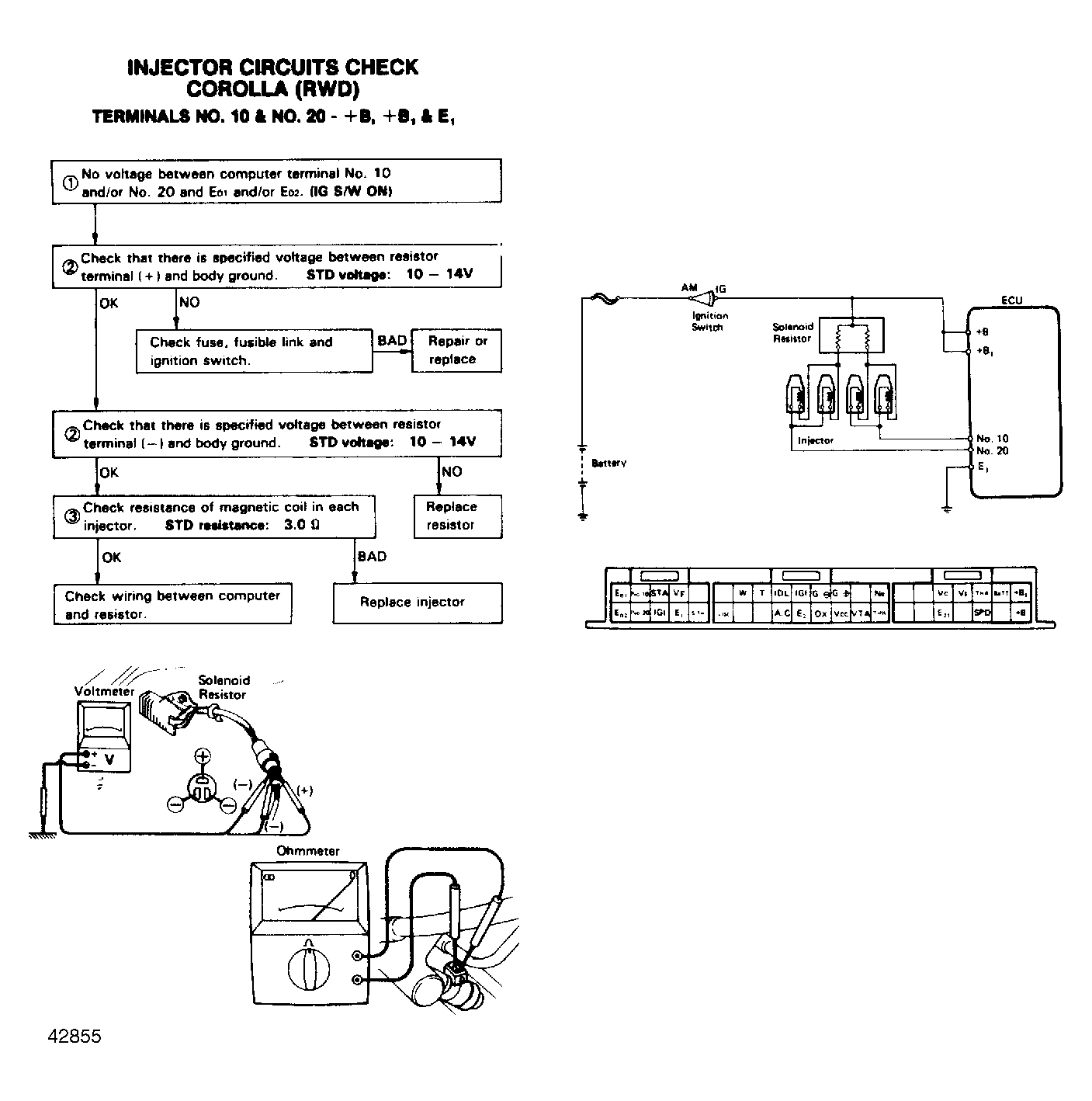

Fig 1: Terminals No. 10 & No. 20 - +B1, +B1 & E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
