Wiring Diagrams

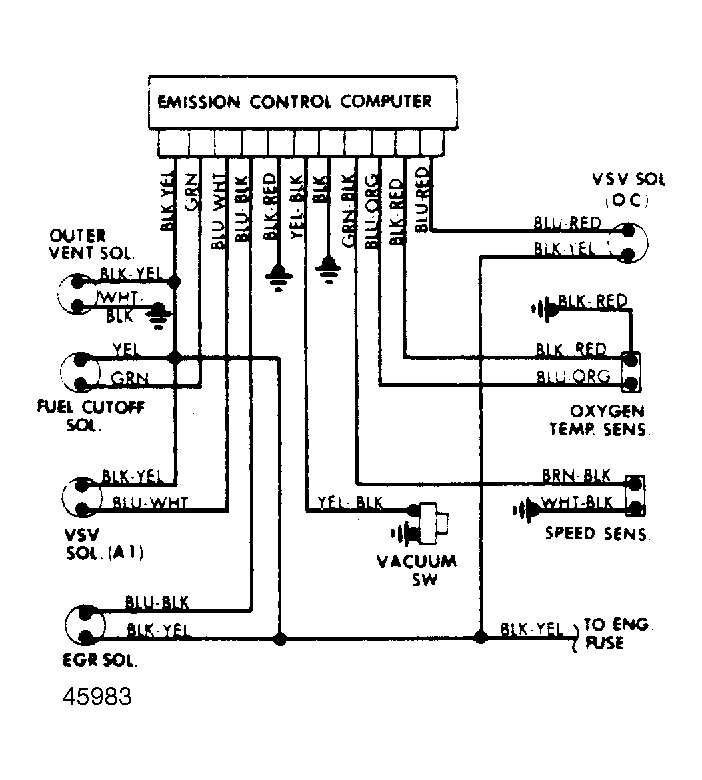

Fig 1: Computer Controlled Emission System Wiring Diagram
G45983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
