Door Lock Key Switch

  1. Check that there is continuity between terminals 2 and 3 with the switch free. See Fig 1.
  2. Check that there is no continuity between terminals 1 and 2 when the switch is pushed.
  3. If continuity is not as specified, replace switch.

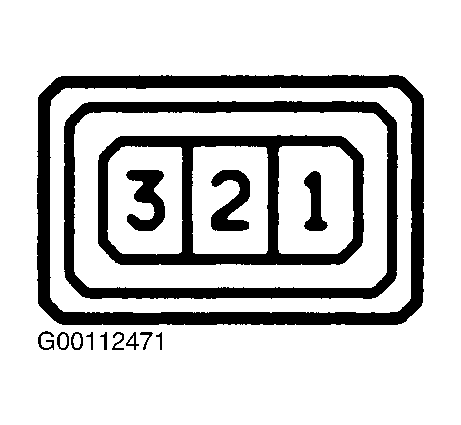

Fig 1: Identifying Door Lock Key Switch Terminals
G00112471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
