A/C Compressor
A/C Compressor

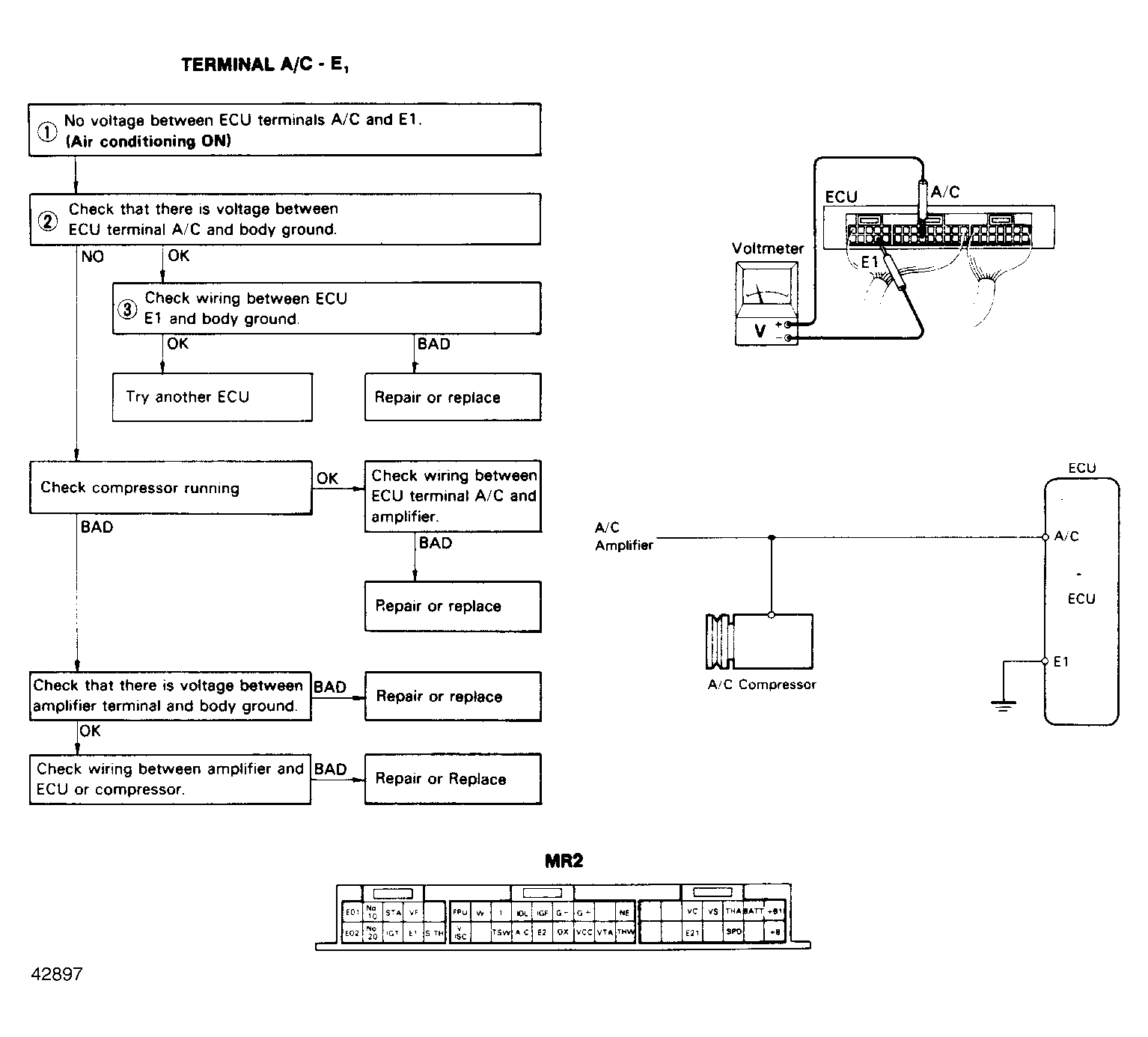

Fig 1: Terminal A/C - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
