Injector Circuits Check

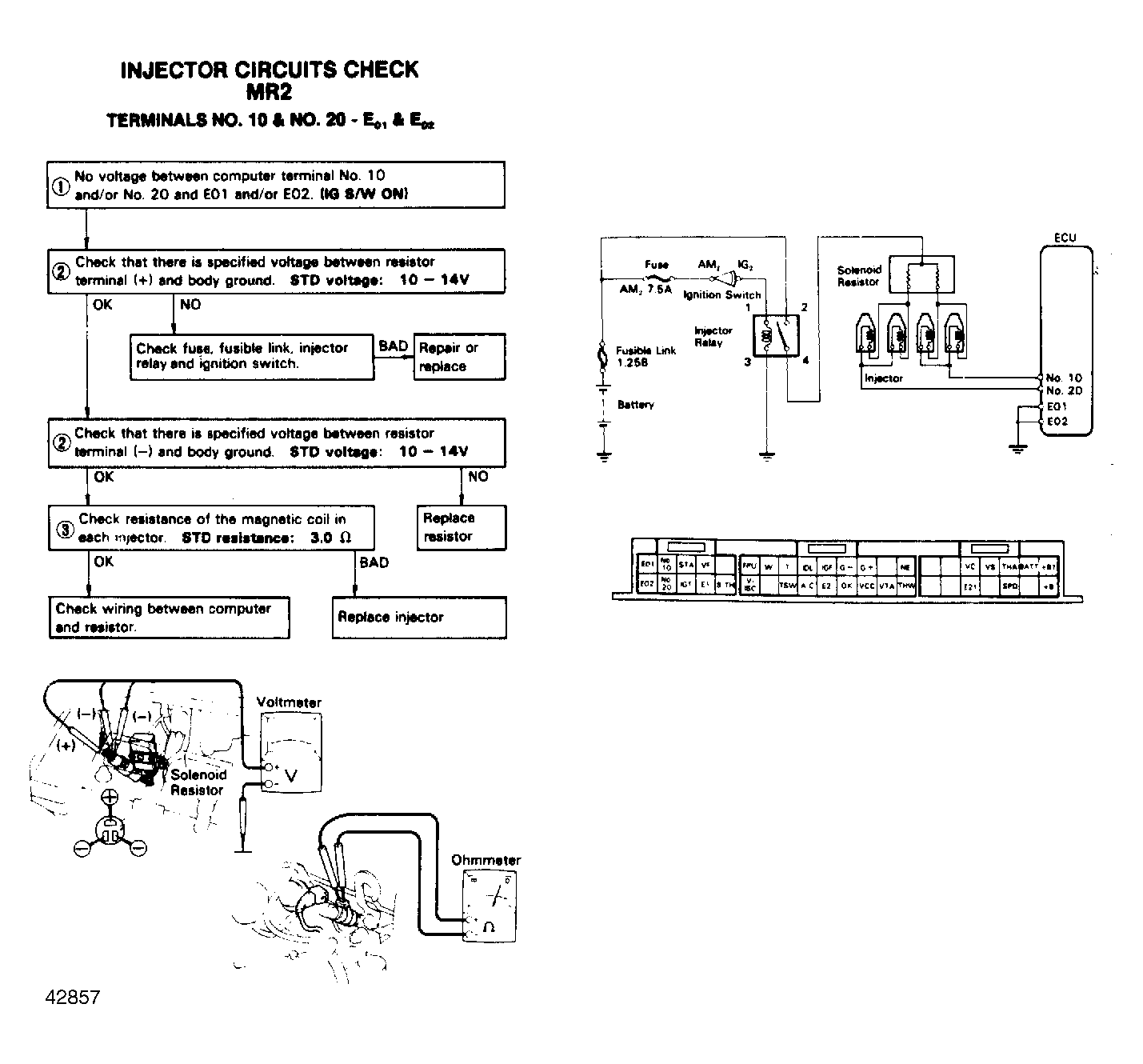

Fig 1: Terminals No. 10 & No. 20 - E01 & E02
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
