Trouble Code 10 Blinks Ignition & Starter Circuit

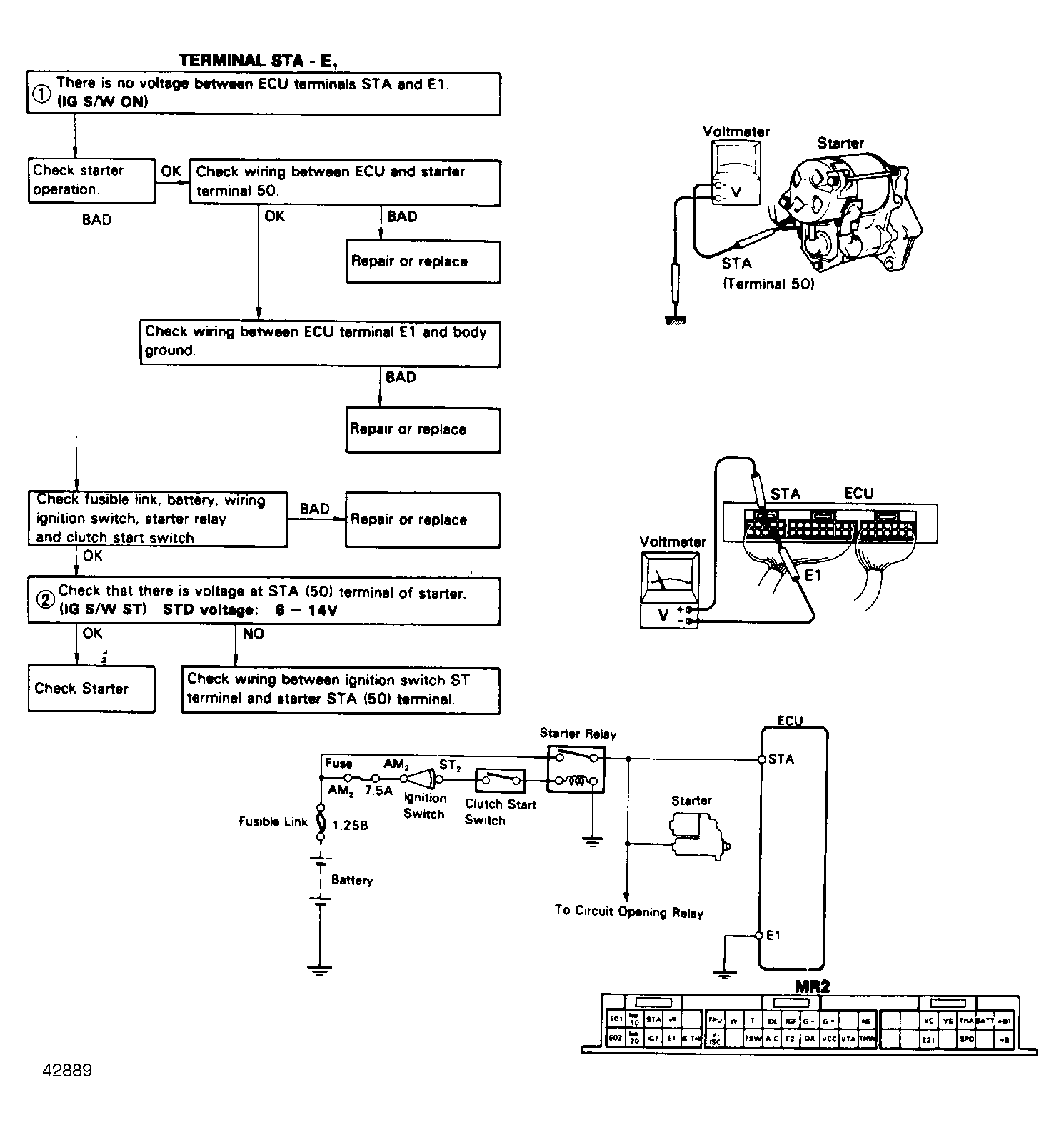

Fig 1: Terminal STA - E1
G42889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
