Home >> Toyota >> 1985 >> MR2 >> Repair and Diagnosis >> Engine Performance >> System >> TCCS System >> Testing >> Trouble Code 4 Blinks Coolant Temp. Sensor & Circuit

Trouble Code 4 Blinks Coolant Temp. Sensor & Circuit

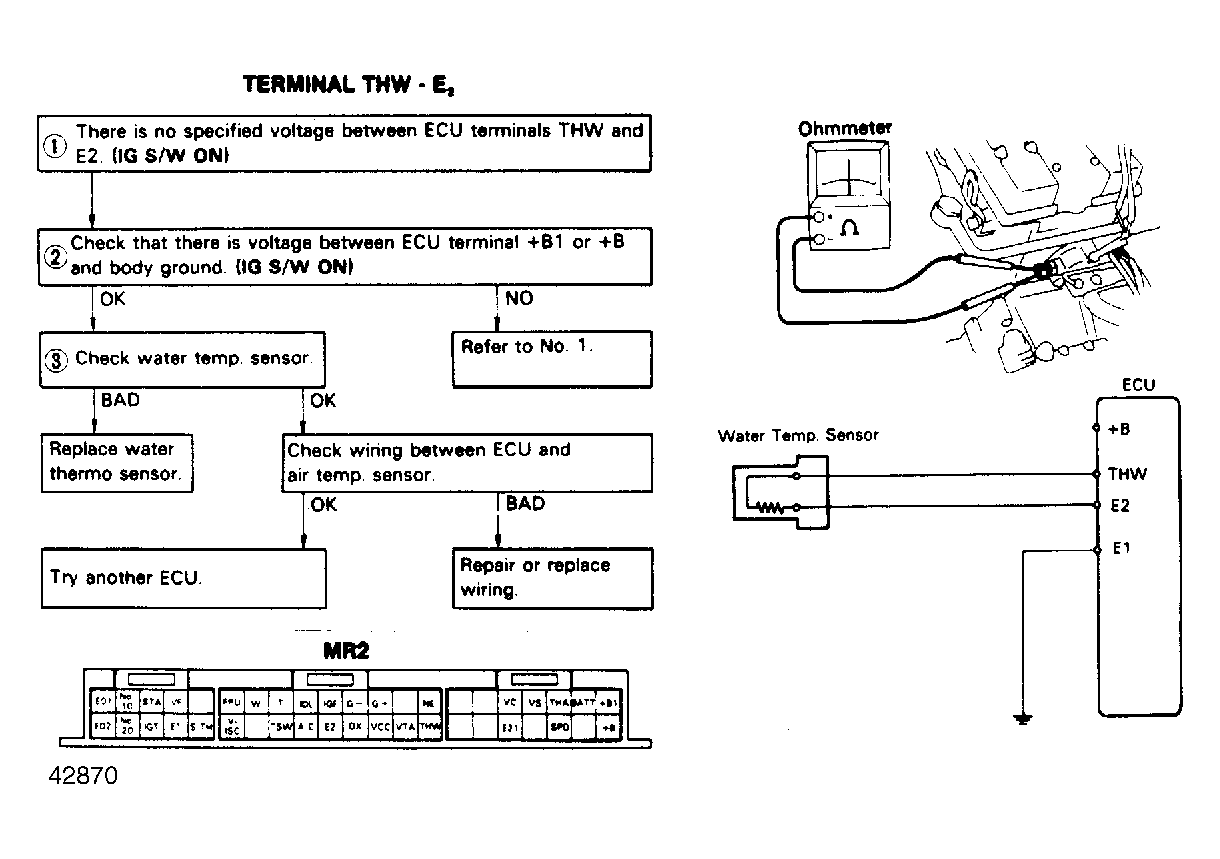

Fig 1: Terminal THW - E2
G42870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
