Service Point Locations
Service Point Locations

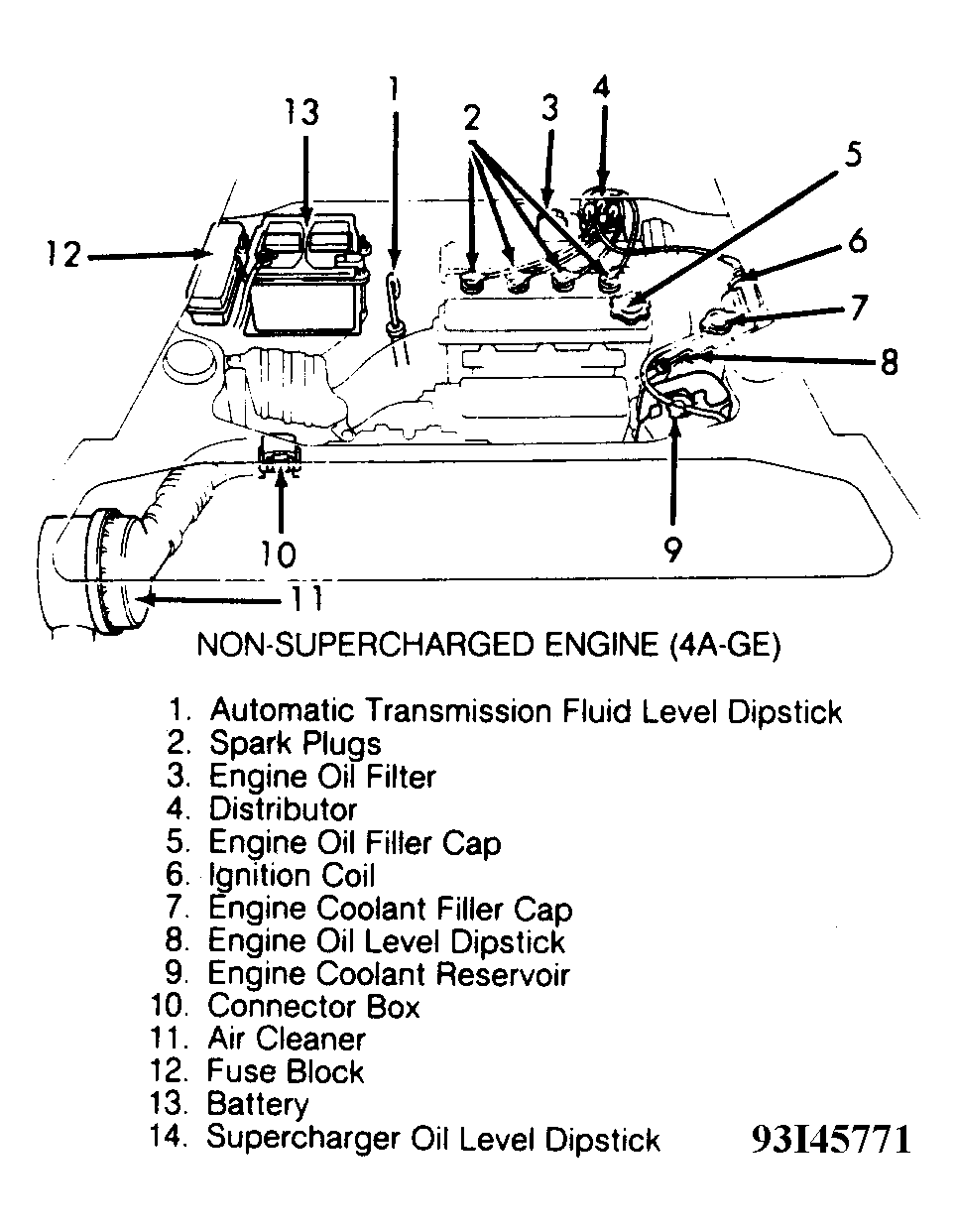

Fig 1: Service Point Locations (Non-Supercharged Engine (4A-GE))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

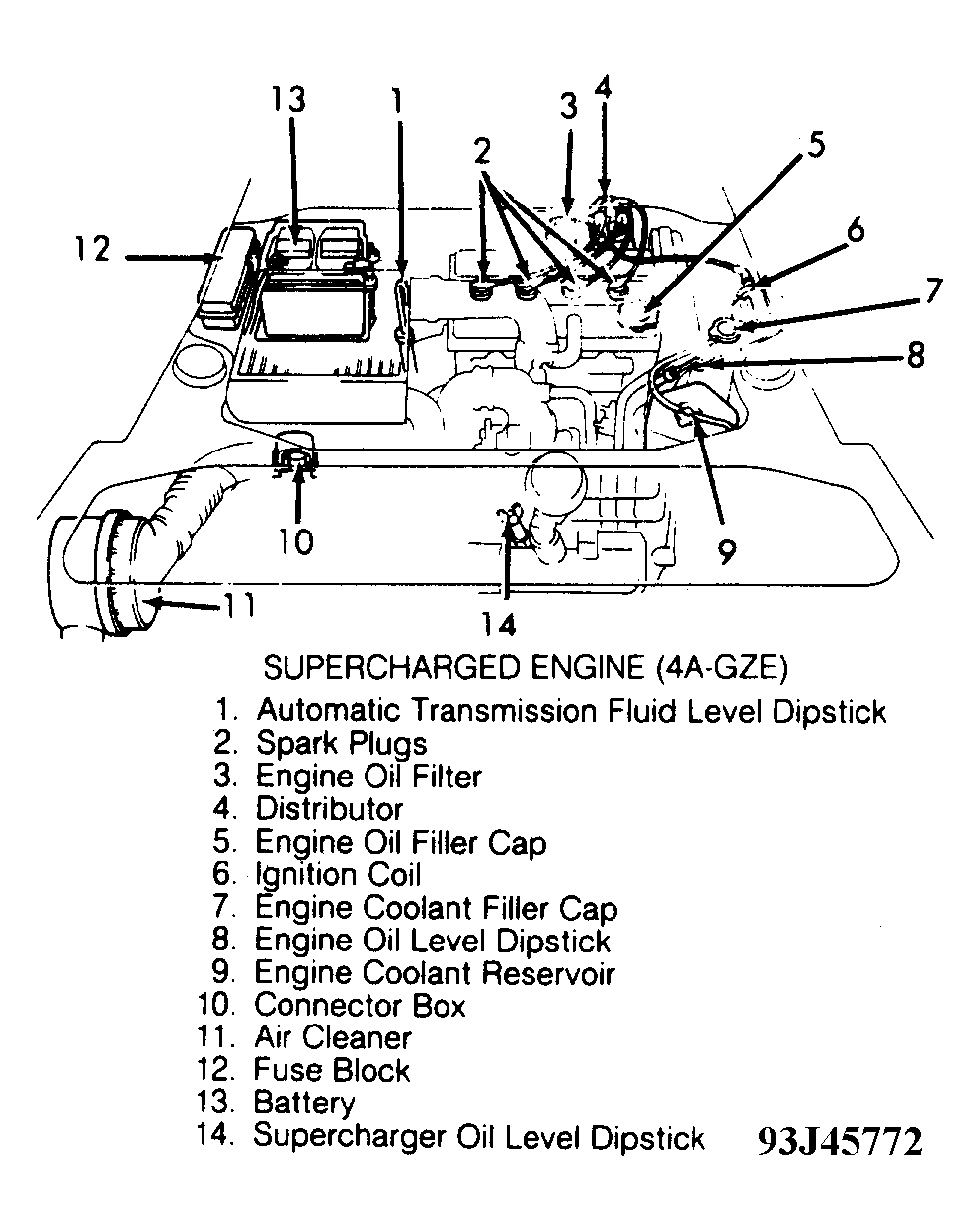

Fig 2: Service Point Locations (Supercharged Engine (4A-GZE))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
