Tercel Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor System
>>
Wiring Diagrams
Wiring Diagrams

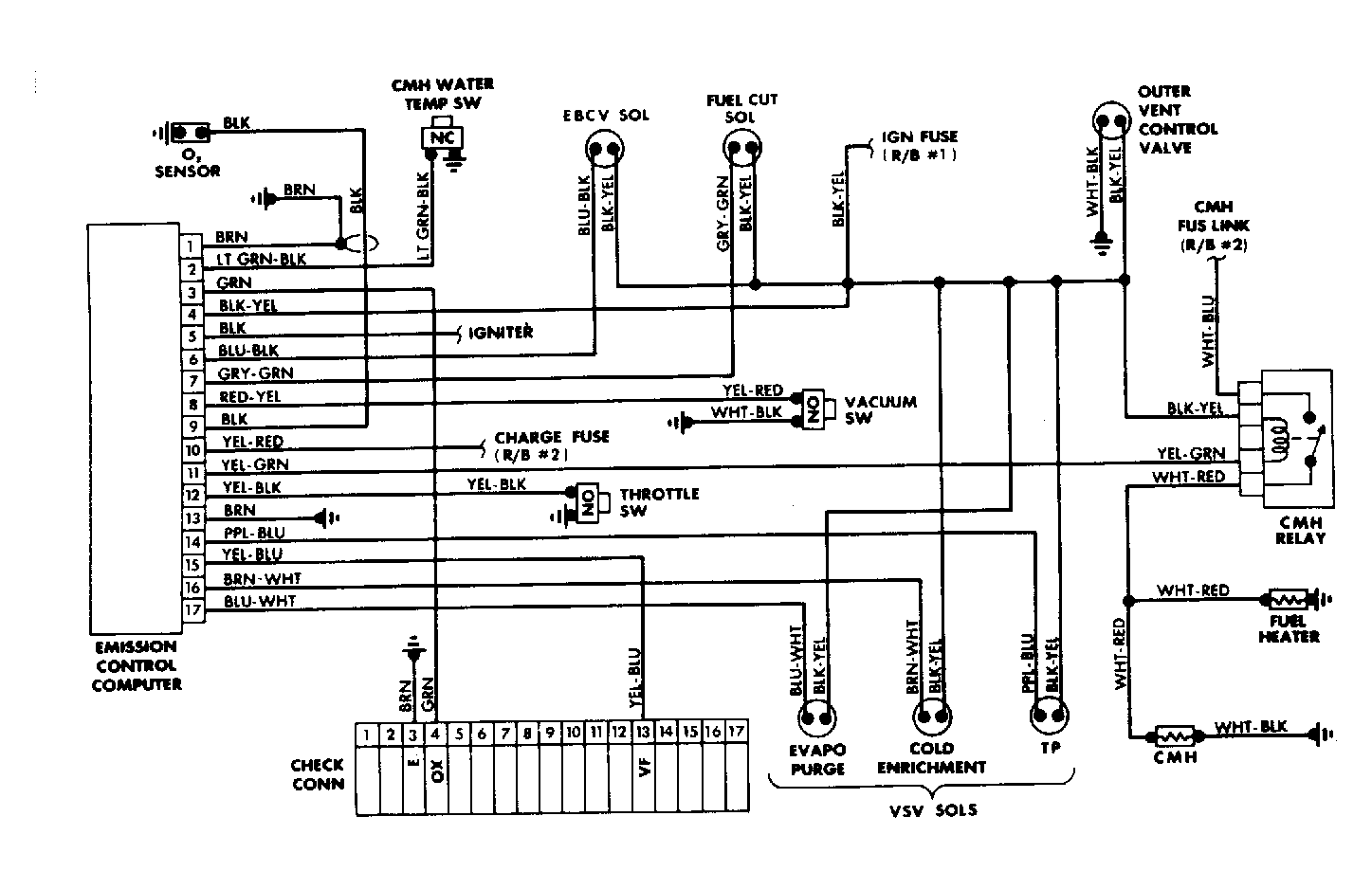

Fig 1: Computer Controlled Emission System (Sedan)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Computer Controlled Emission System Wiring Diagram (Wagon)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
