Relay Continuity

  1. Check that there is continuity between terminals 1 and 4. See Fig 1.
  2. Check that there is no continuity between terminals 1 and 2.
  3. Check that there is no continuity between terminals 3 and 4. If continuity is not as specified, replace the relay.

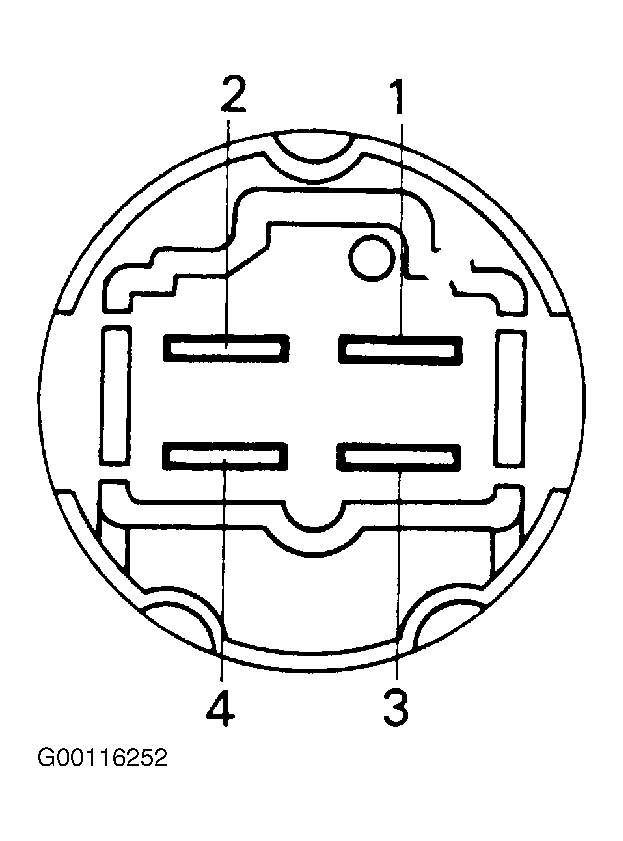

Fig 1: Identifying Power Main Relay Terminals
G00116252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
