Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | On left side of blower housing. |
| A/C Thermistor No. 1 | On left side of forward cooling unit. See Figure. |
| A/C Thermistor No. 2 | On left side of refrigerator unit. See Figure. |
| Fusible Link Box | Passenger's seat, behind access panel. |

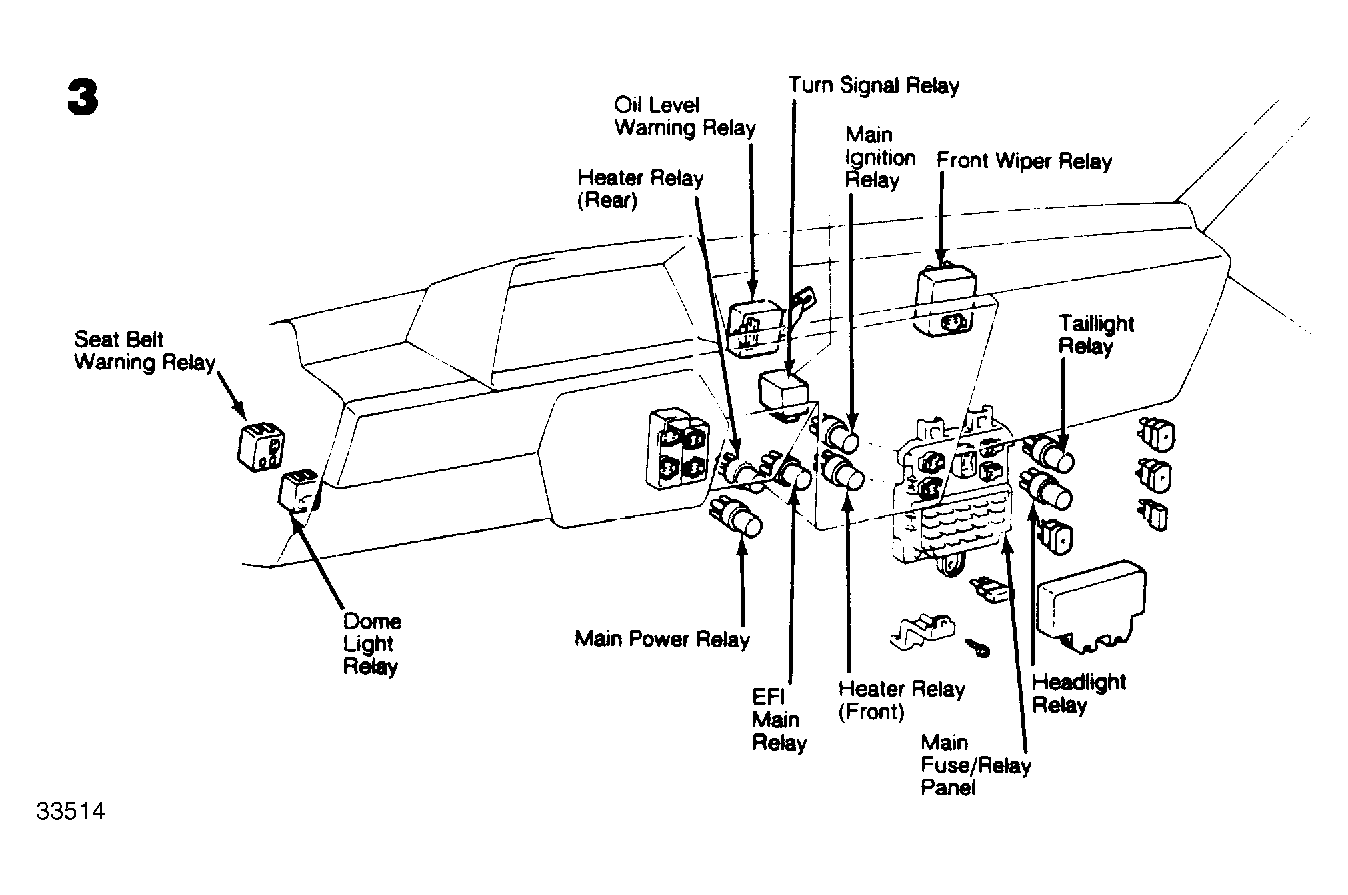

| Main Fuse/Relay Panel | Under center of instrument panel. See Figure. |
| Heater Circuit Breaker | In fuse and relay panel. |
| Ignition Ignitor | On side of ignition coil. |

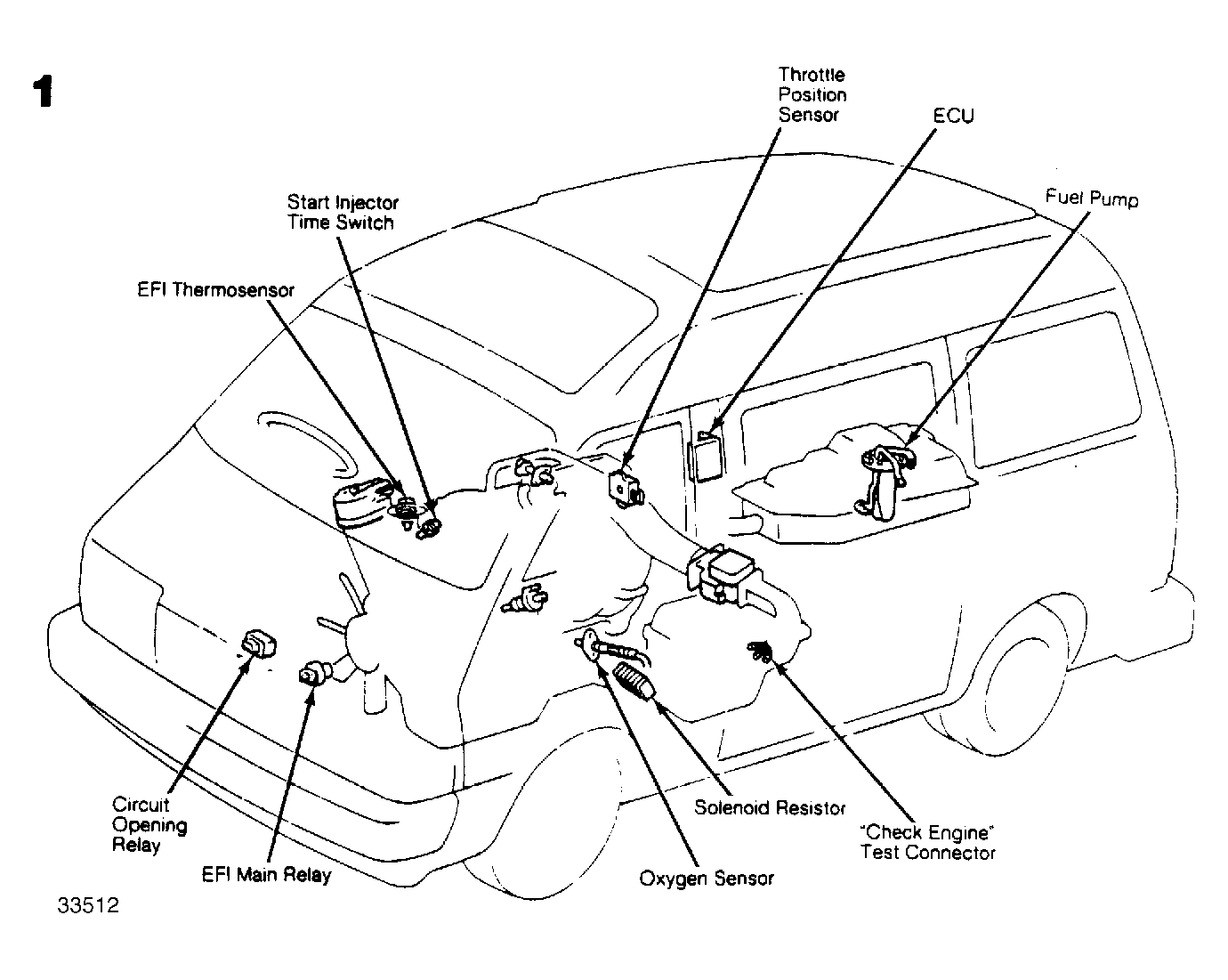

| "Check Engine" Test Connector | Near throttle body. See Figure. |
| Solenoid Resistor | Mounted near oxygen sensor. See Figure. |
| Voltage Regulator | Mounted inside alternator (integral). |
